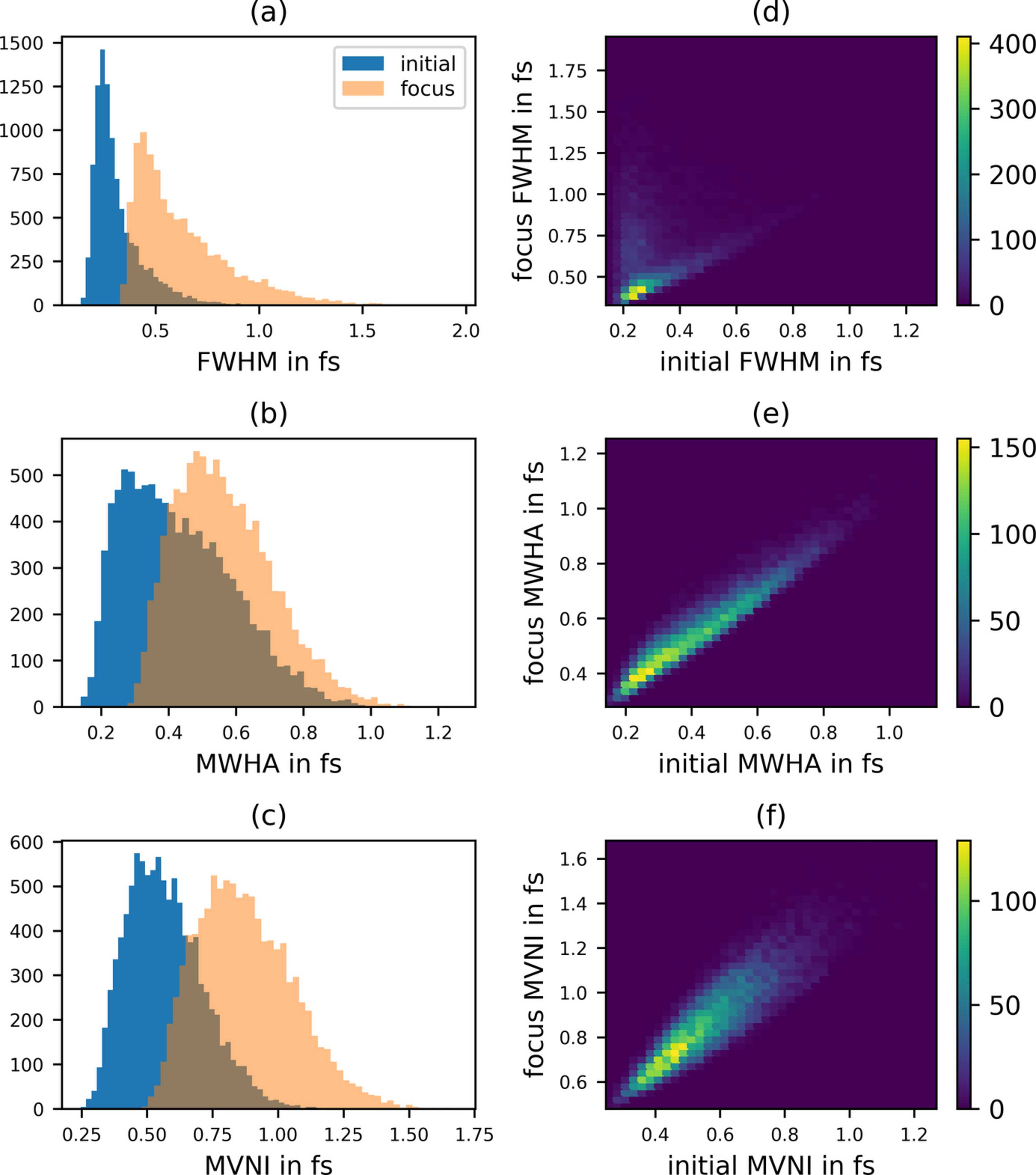

Figure 9
Statistics of the pulse length of 10 000 random SASE pulses with an average FWHM of 1 fs. Initial pulse before the lens, and pulse at the focus (f = 3 m). (a) Full width at half-maximum, (b) minimum width half area, (c) maximum normalized integrated value. (d, e, f) 2D histograms of the pulse width before the lens and at the focus.
