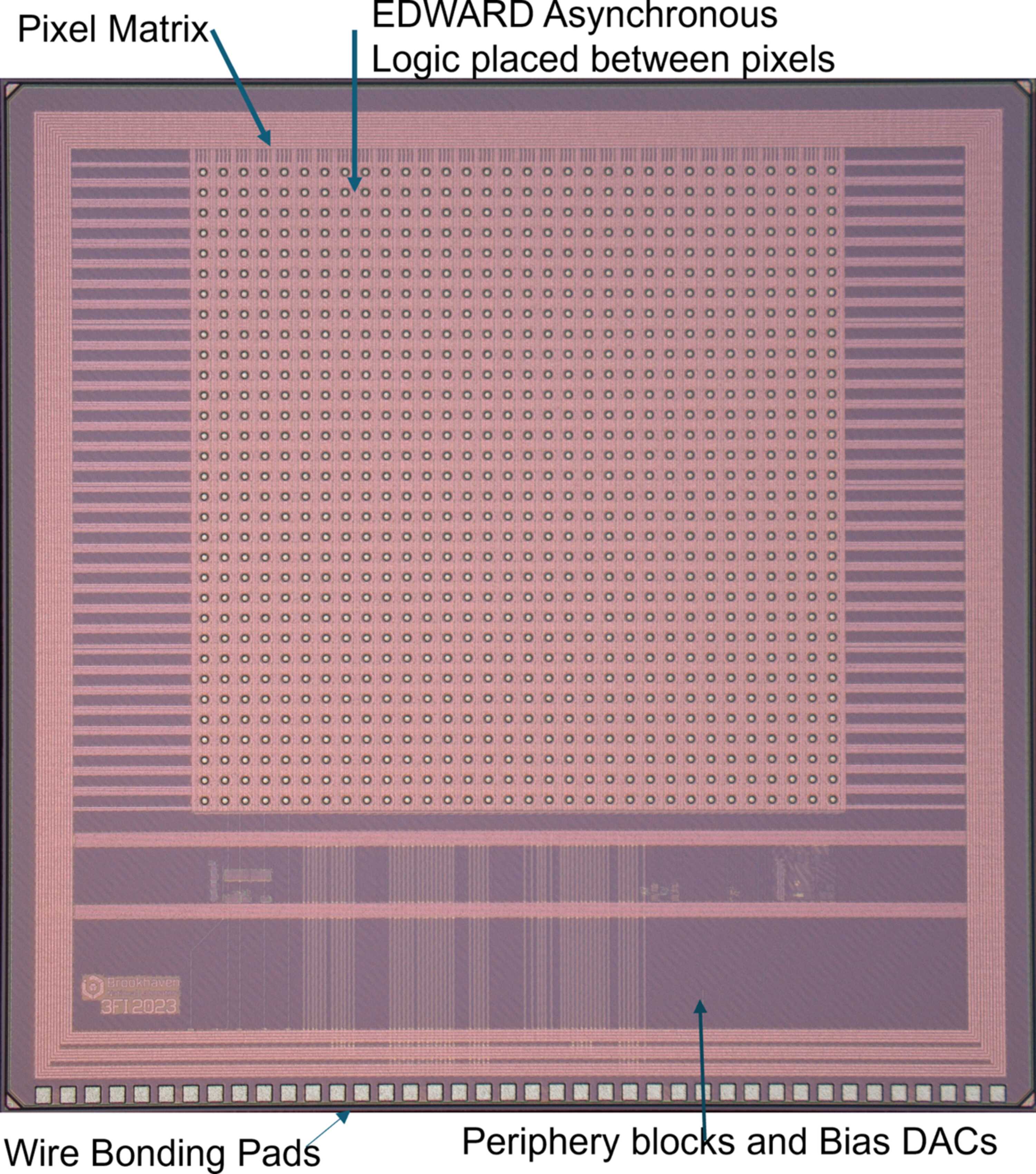

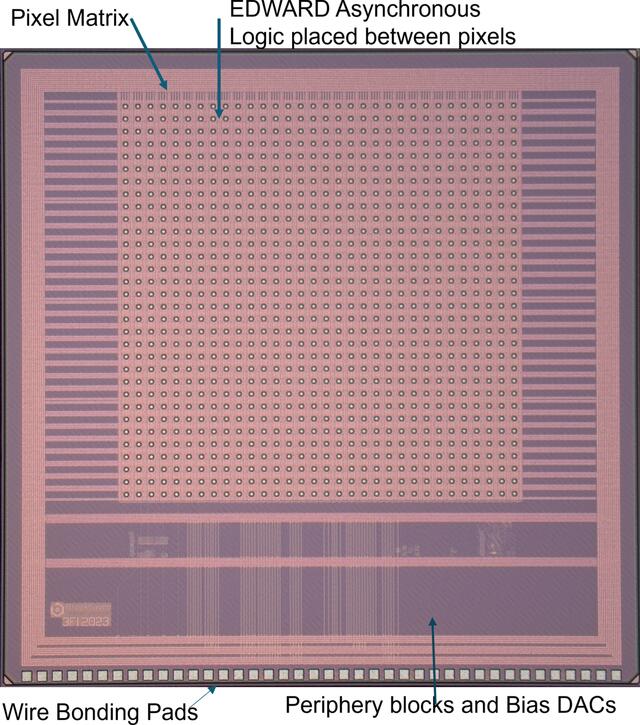

Figure 2
Photograph of the 3FI ASIC with visible wire-bonding pads placed on one side, being compatible with three-side buttable detector designs, periphery blocks for chip control, pixels and EDWARD logic layout are placed in between them. |
