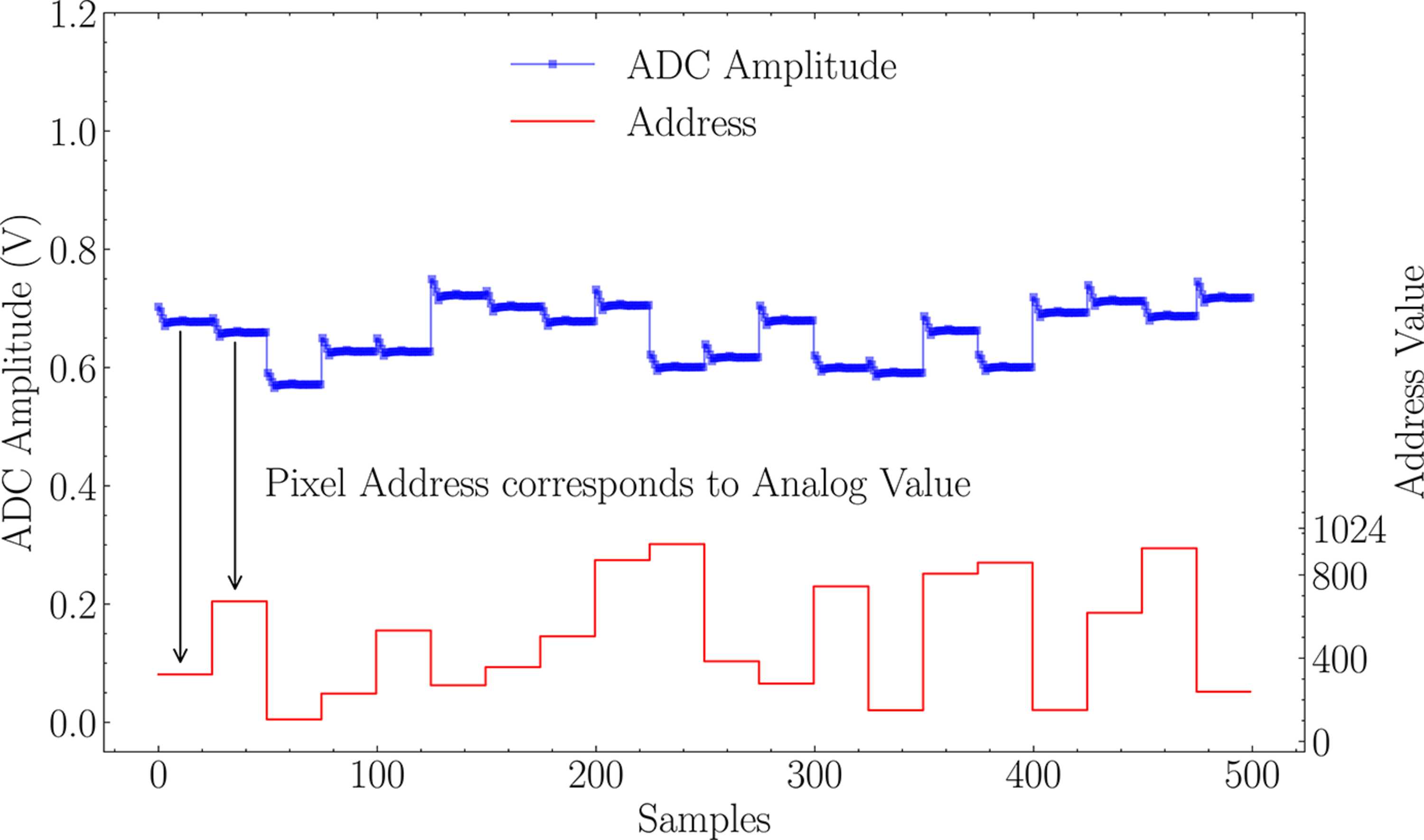

Figure 4
3FI readout modes: single-pixel readout mode, where the upper plot is assigned to the left scale, presenting the measured pulse amplitude in voltage, while the bottom plot presents the corresponding event address scaled to the right-side Y axis.
