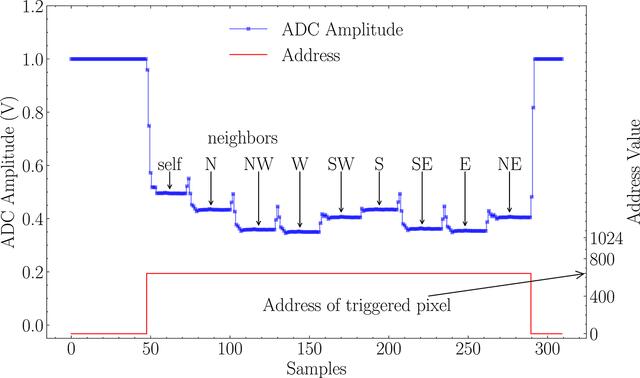

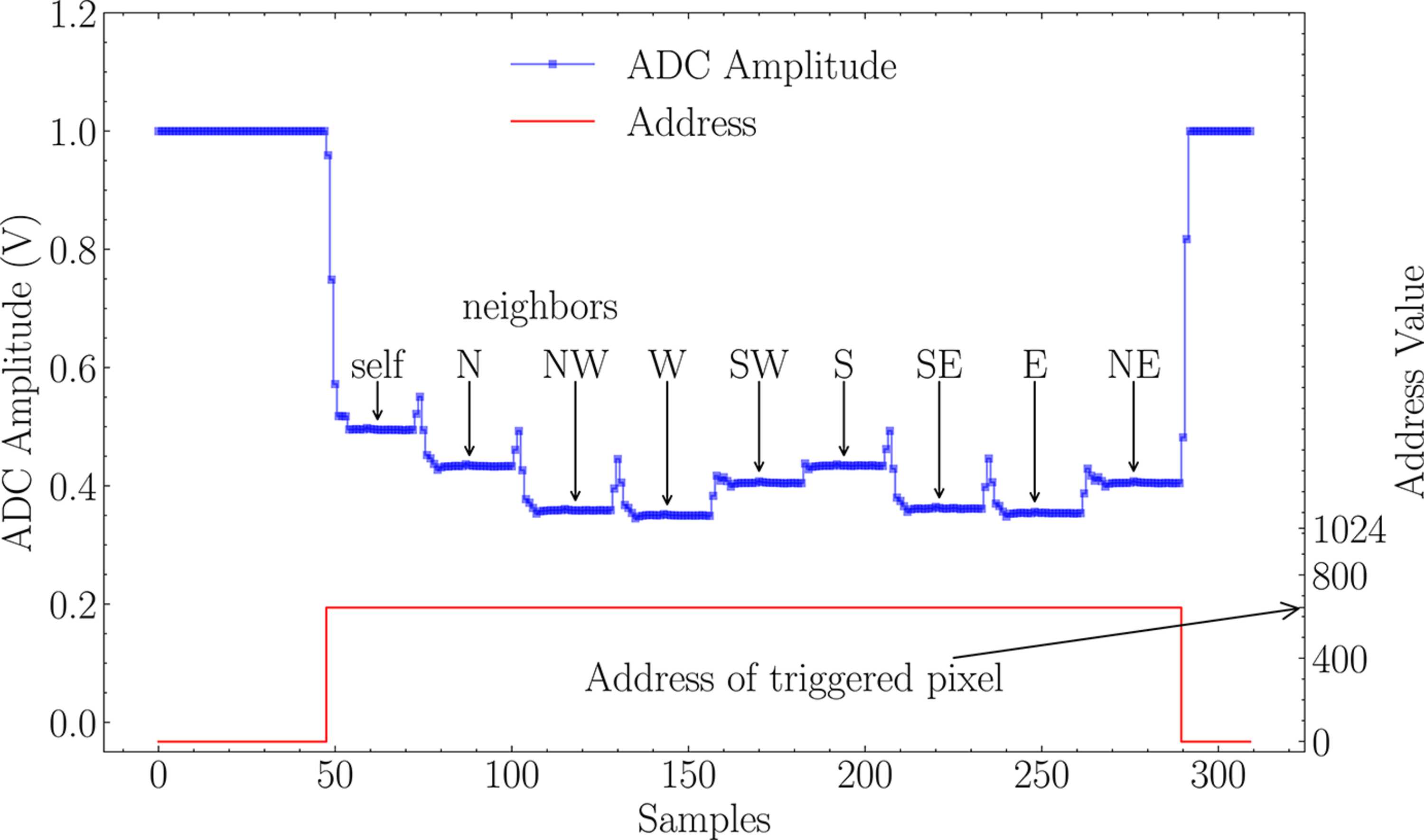

Figure 5
3FI readout modes: charge-sharing compensation readout mode, where the upper plot is assigned to the left scale, presenting the measured pulse amplitude in voltage, while the bottom plot presents the corresponding event address scaled to the right-side Y axis. The single event from the pixel address 648 triggers the readout of a central pixel together with all neighbors marked with geographic abbreviations (N, NE, …).
