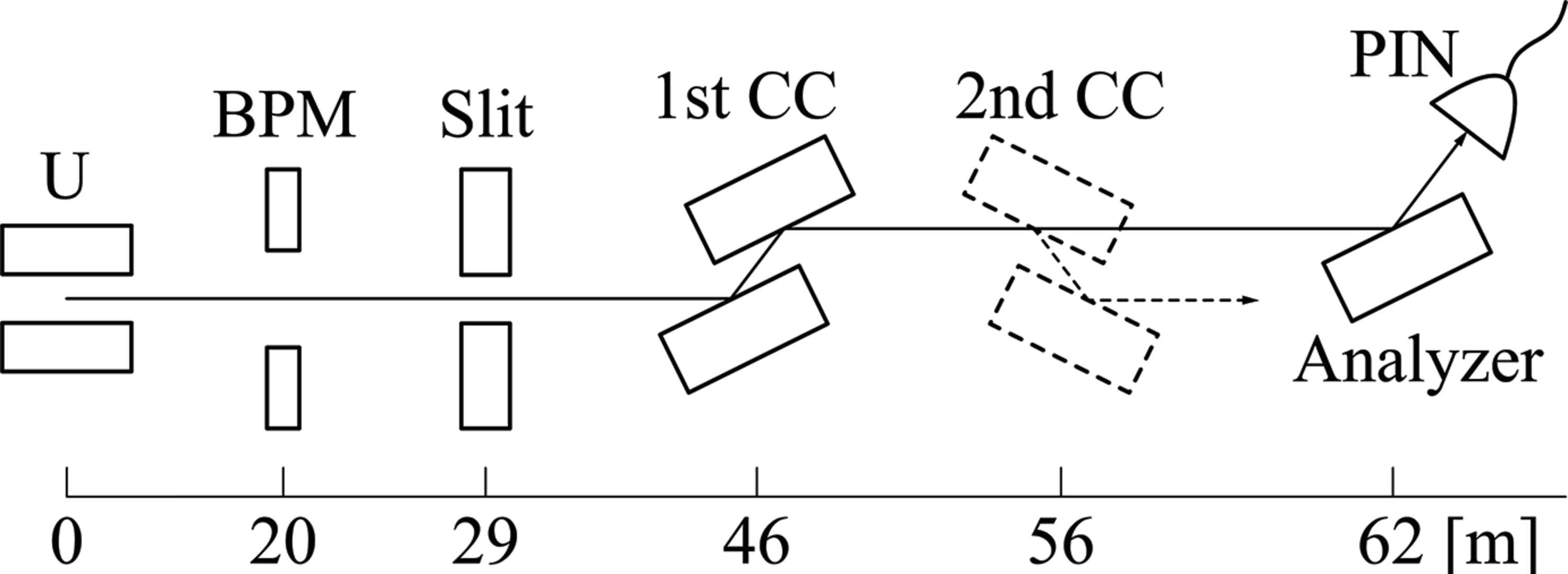

Figure 1
Beamline layout. The numbers indicate distances from the undulator (U). BPM: beam-position monitor; CC: channel cut. Monochromatic beams were analyzed at the experimental station located 62 m downstream, where a beam image monitor, a θ–2θ goniometer mounting an analyzer crystal and a PIN photodiode (illustrated in this figure), and a PIN photodiode were alternately installed for different measurements.
