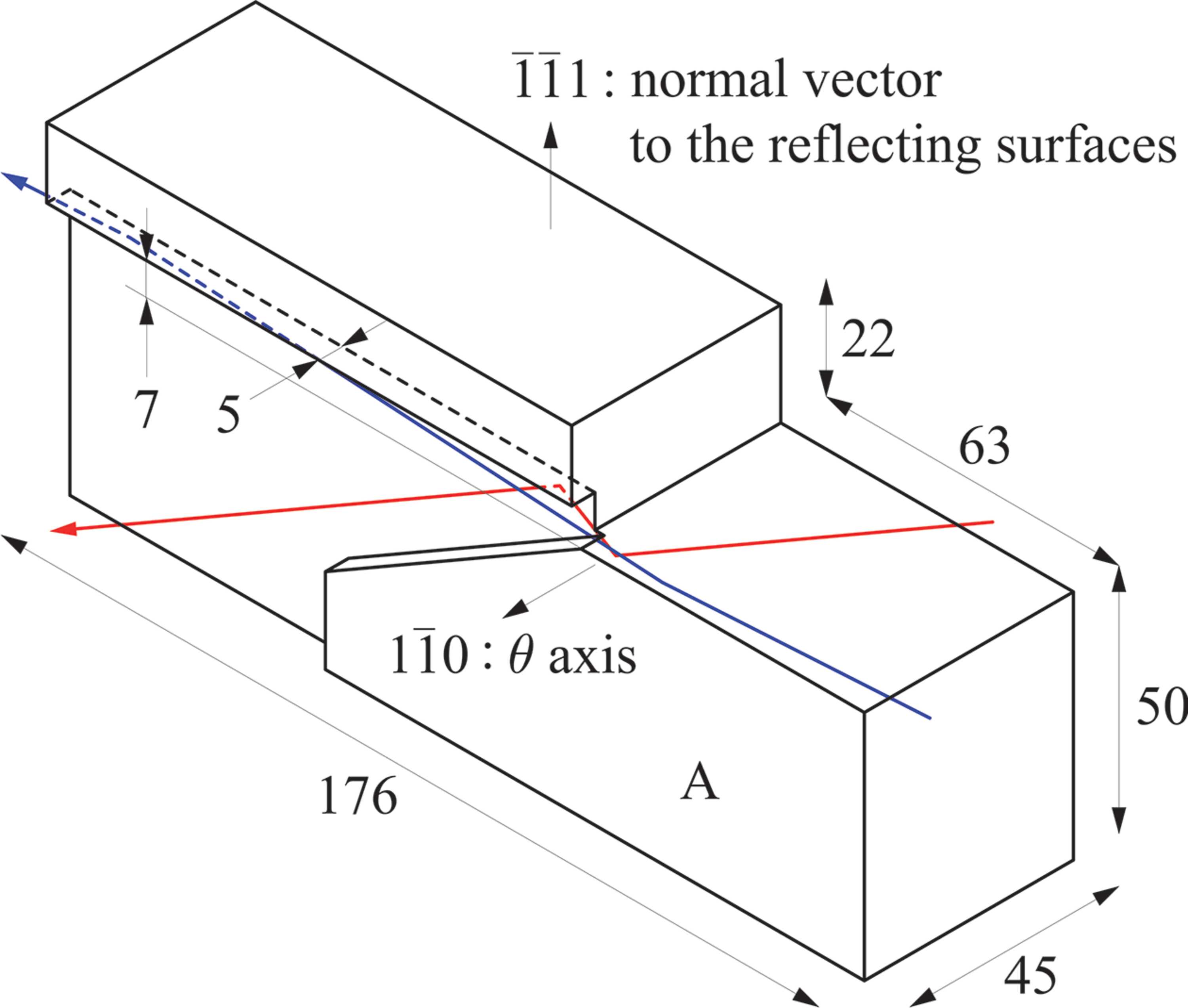

Figure 2
Design of the first channel-cut crystal. All dimensions are in millimetres. Bragg angles were varied by θ rotation of the crystal about the [1\bar{1}0] axis. Red and blue lines represent beam paths relative to the crystal orientation at photon energies of 4.46 and 24.8 keV, respectively.
