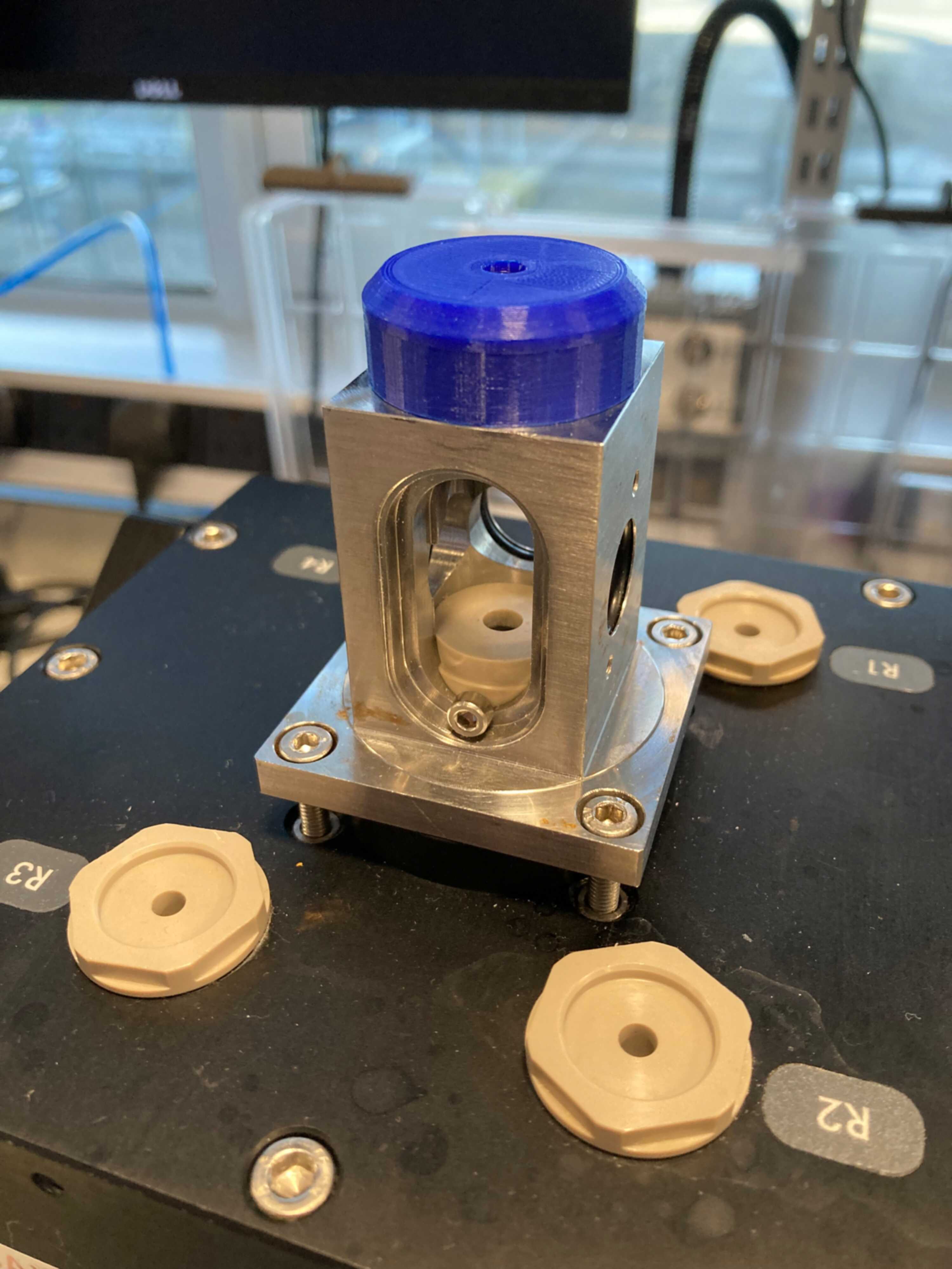

Figure 1
The X-ray head installed on the stop-flow unit. The blue compression screw top forces the tip of the capillary holder (Fig. 2[link]) inside the head into an o-ring seal in the base of the unit. This compression also pushes a second o-ring seal into the glass capillary. The blue screw top in this image is a 3D printed replacement for the manufacturer's part which perished due to exposure to solvents. STL files can be found in the supporting information.

Journal logoJOURNAL OF
SYNCHROTRON
RADIATION
ISSN: 1600-5775
Volume 33| Part 1| January 2026| Pages 195-197
https://doi.org/10.1107/S1600577525009907
