Figure 11

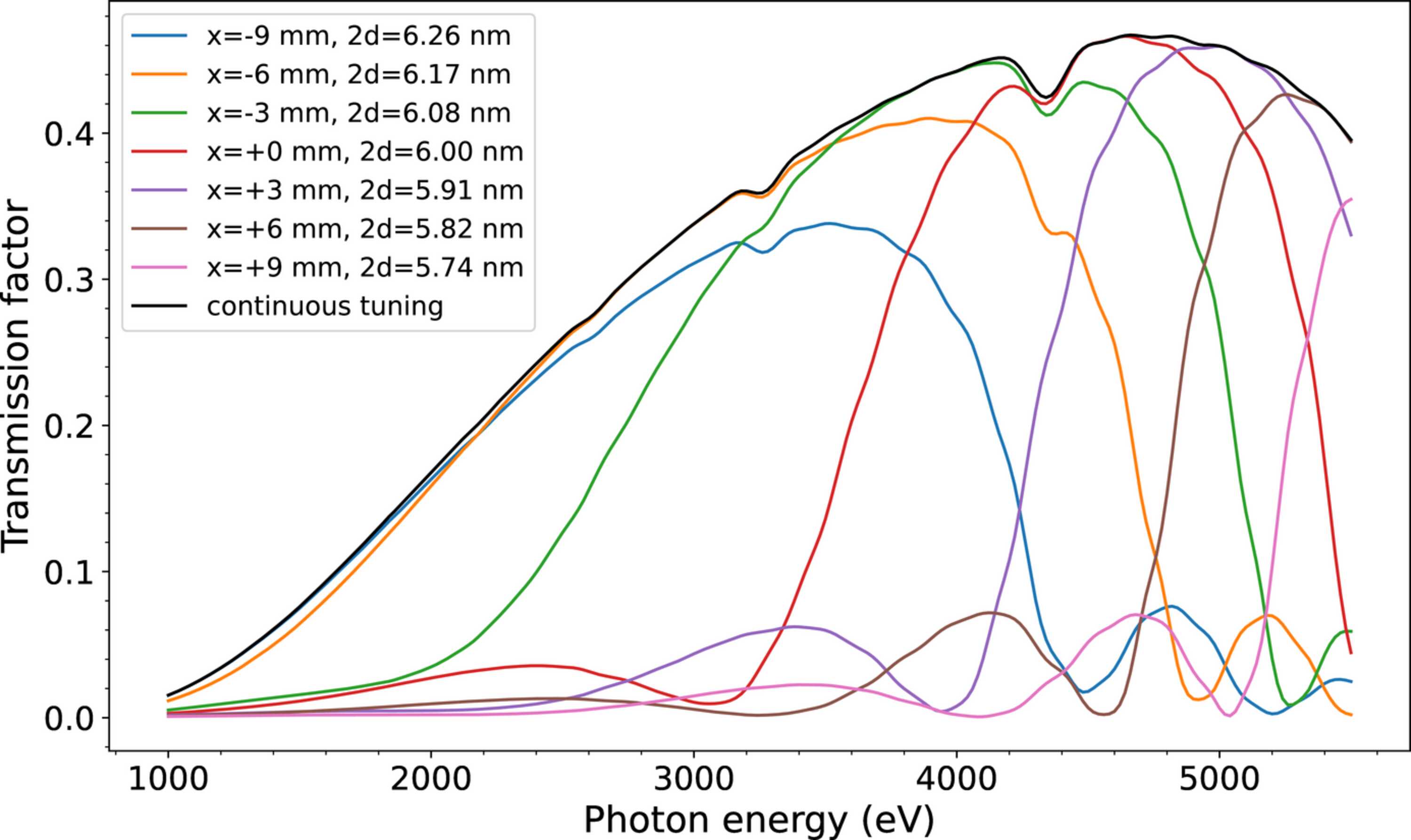

Overall transmission of the monochromator evaluated from fits of ML grating and mirror models with measured reflectivities. The transmission is plotted for seven transverse positions of the mirror spaced by 3 mm. The monochromator also allows a continuous adjustment of the mirror position with energy yielding to the black curve.
