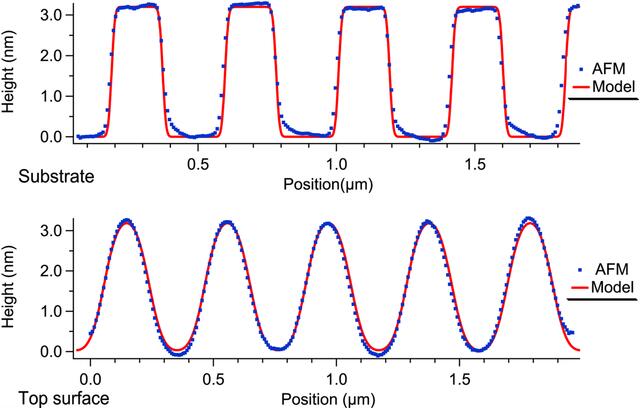

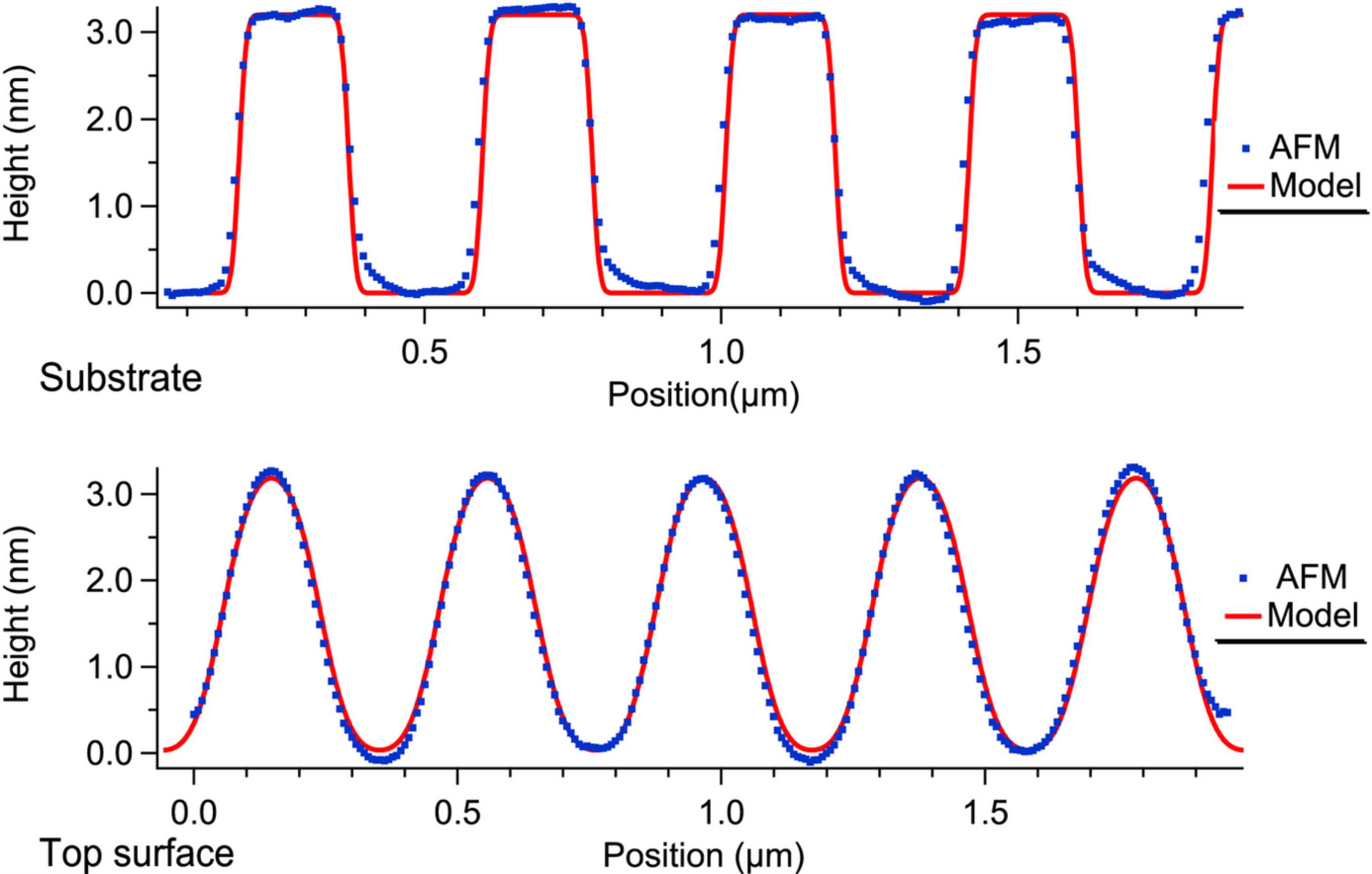

Figure 5
AFM measurements in the central area of the grating before and after multilayer coating. The two profiles were recorded near the grating center and they are averaged over a line length of ∼0.2 µm. The measured profiles (blue dots) are compared with modeled profiles (red lines) computed with the parameters of Table 3[link].
