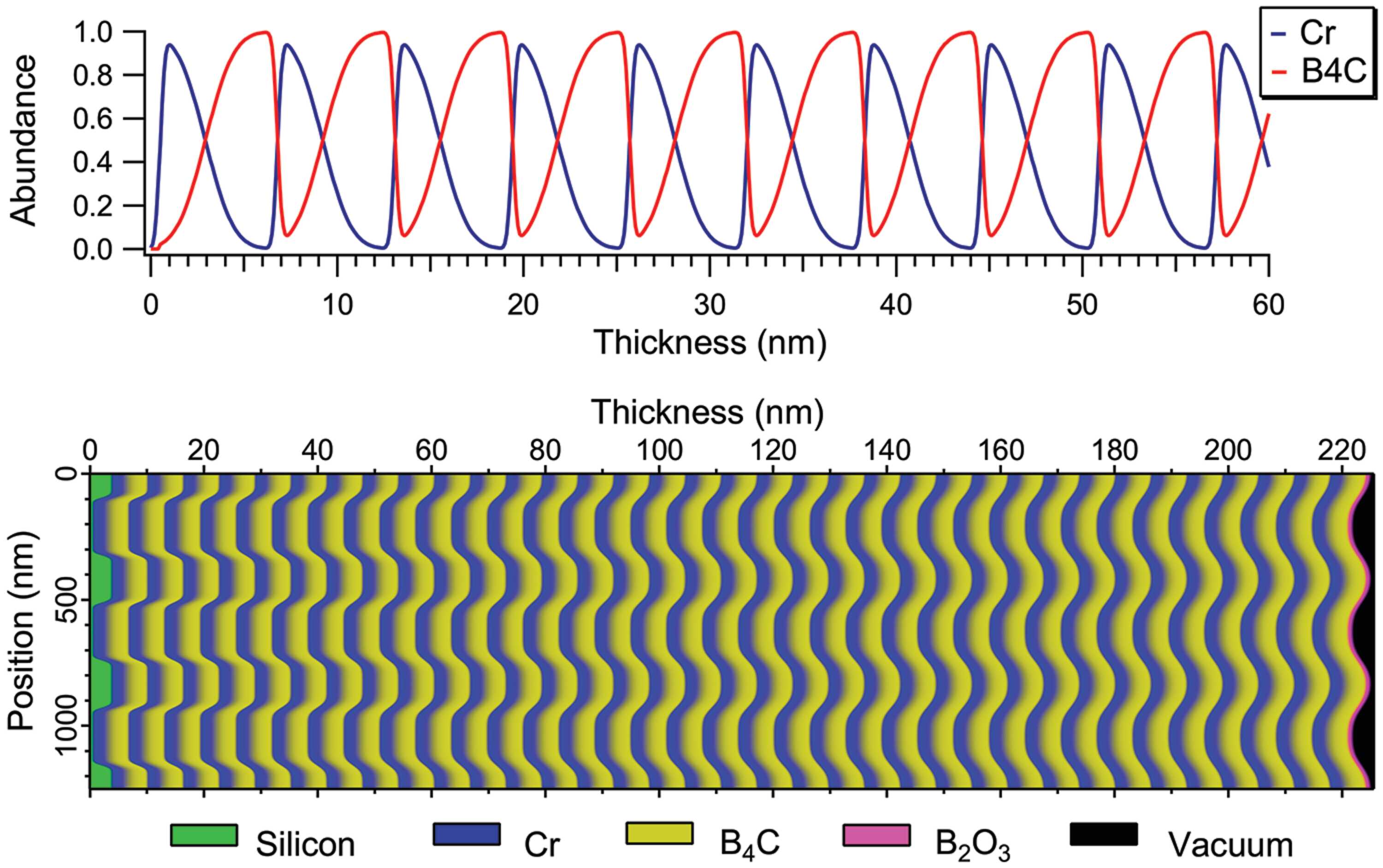

Figure 6
Distribution of materials inside the modulated volume. Top panel: relative abundance of Cr and B4C versus deposited thickness (over flat surface areas). Bottom panel: material distribution map of 2.5 grating periods (left axis) inside the multilayer showing the damping of the shape as a function of thickness (top axis). The substrate, in green, is on the left and vacuum, in black, on the right.
