Figure 1

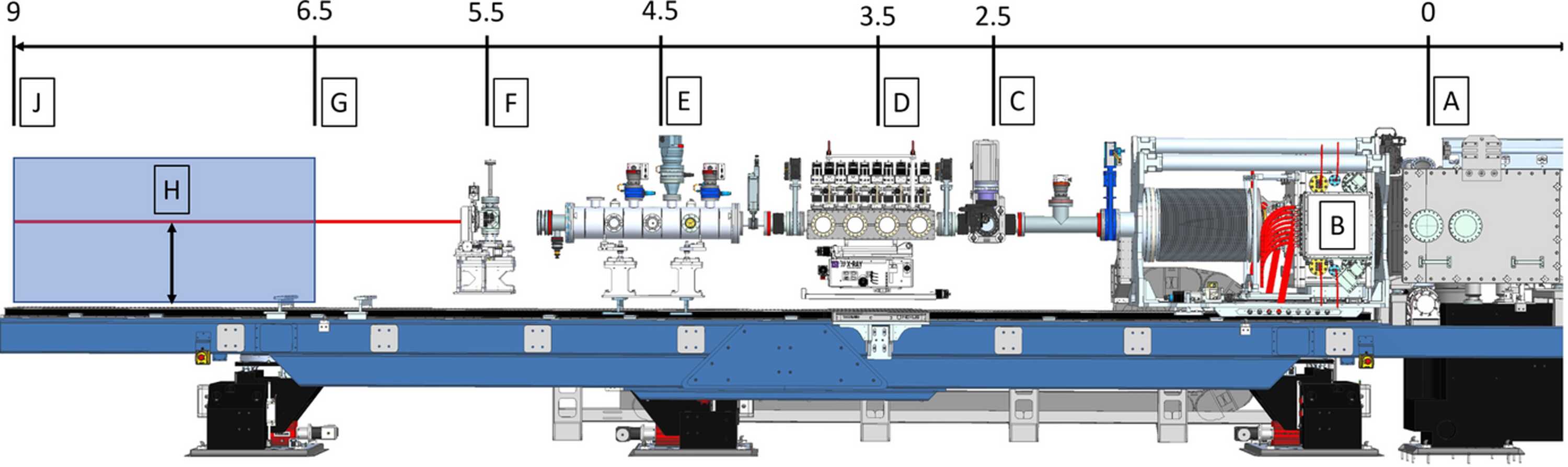

IRD instrumentation installed on the CSS downstream of the IRU. The beam direction is from right to left. Distances are in metres from the IRU focal plane. Components are labelled as follows: A the IRU (focal plane defined as reference point 0 m), B the AGIPD (1M) detector, C the in-vacuum beam visualization screen, D the compound refractive lens transfocator, E the acoustic delay line, F the helium beam visualization screen, G the upstream focus limit, J the downstream focus limit and H an open space for user installations. The region from downstream of the acoustic delay line (E) can be used to install any custom sample environment and/or available detector within the given space constraints (beam height from CSS breadboard = 0.54 m).
