The Single-Particle, Clusters and Biomolecules and Serial Femtosecond Crystallography instrument of the European X-ray Free-Electron Laser: Interaction Region Downstream at atmospheric pressure (IRD)

Round, A.; Aller, P.; Bean, R.J.; Bielecki, J.; Butryn, A.; Devenish, N.; de Wijn, R.; Dietze, T.; Doerner, K.; Dall'Antonia, F.; Fischer, P.; Giovanetti, G.; Guenther, S.; Han, H.; Hennicke, V.; Kim, C.; Kim, Y.; Kloos, M.; Koliyadu, J.C.P.; Leen, G.; Letrun, R.; Lopez Morillo, L.; Orville, A.M.; Pakendorf, T.; Ramilli, M.; Reimers, N.; Reinke, P.; Sanchez-Weatherby, J.; Sato, T.; Schubert, R.; Schulz, J.; Signe Takem, C.; Sikorski, M.; Thute, P.; Trost, F.; Turkot, O.; Vagovič, P.; Vakili, M.; Villanueva Guerrero, R.; Chapman, H.N.; Meents, A.; Molodtsov, S.; Pascarelli, S.; Tschentscher, T.; Mancuso, A.P.

doi:10.1107/S1600577525008999

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 3

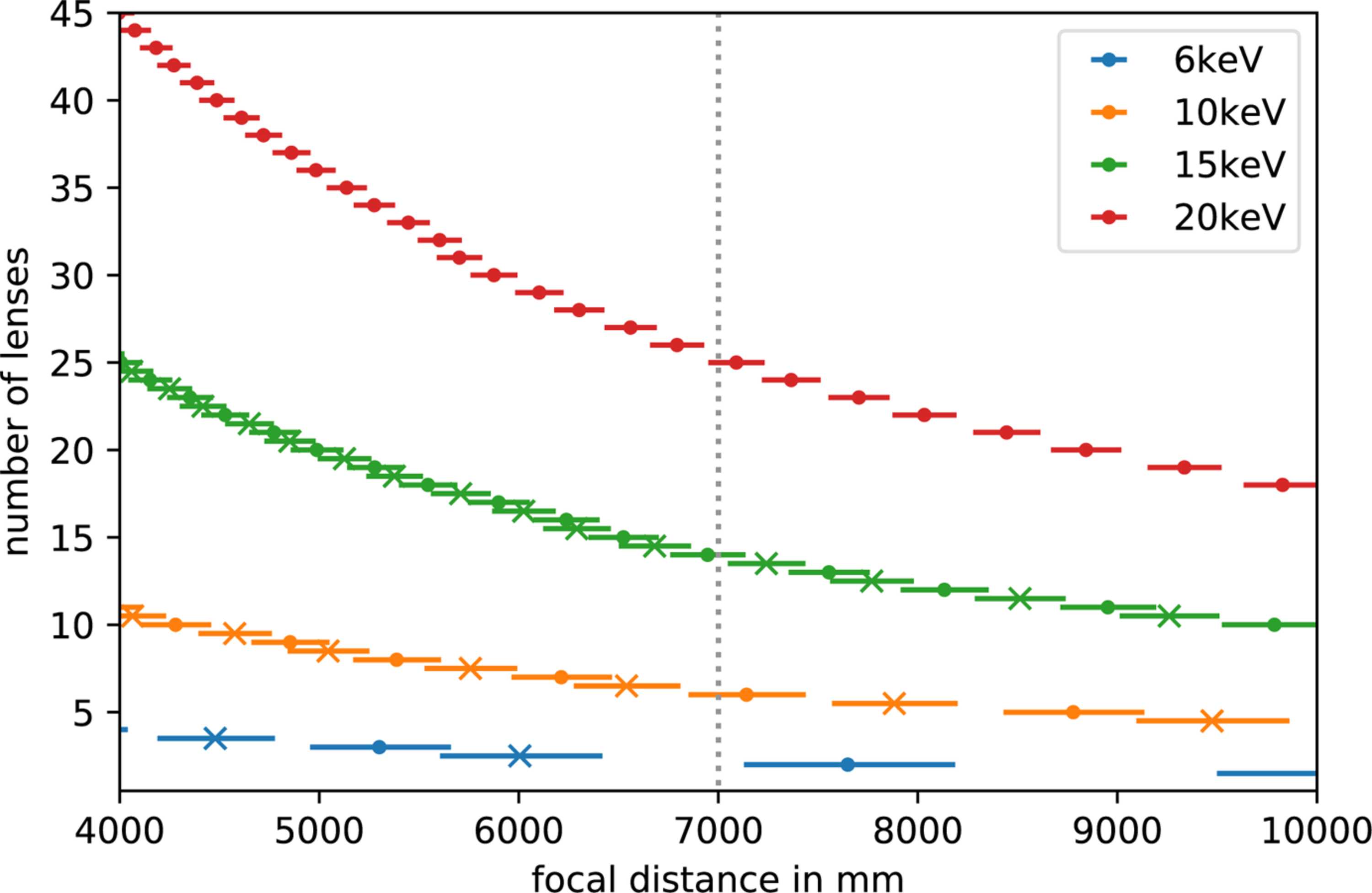

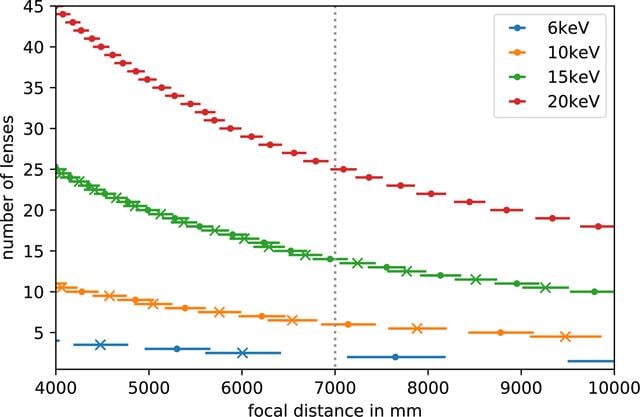

Plot of the number of lenses required for a desired focal distance across the working energy range of the SPB/SFX instrument calculated using ray tracing assuming a parallel beam via the use of additional (pre-focusing) CRLs in the photon delivery tunnels. The dotted vertical line indicates the standard focal distance for the IRD SFX setup. This plot provides a guide for the design of custom (user-designed) experimental setups in the downstream region of the SPB/SFX instrument.
