Figure 5

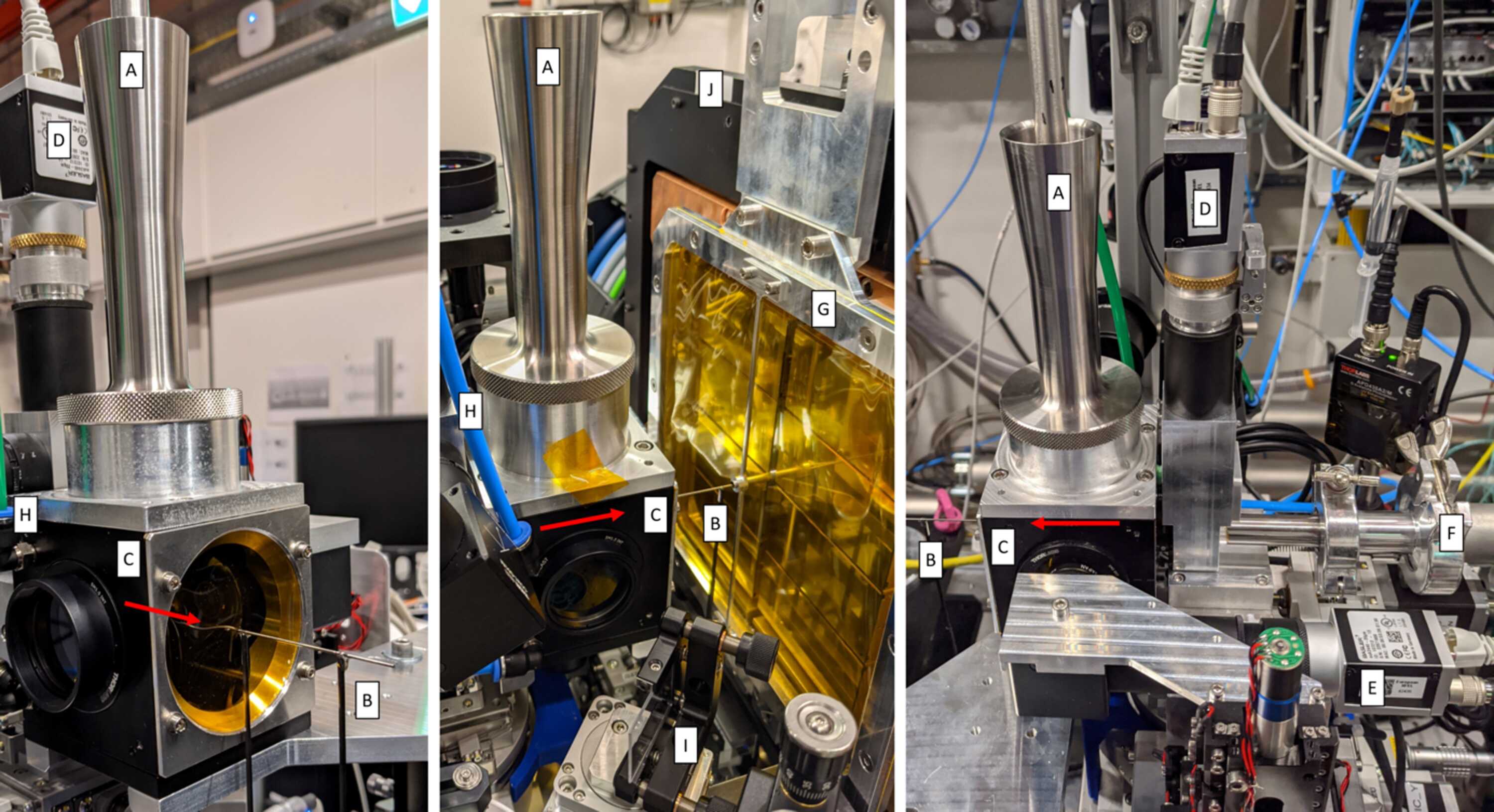

IRD sample environment. (Left) The atmospheric pressure (helium) injection setup mounted on the Roadrunner sample environment, which sits directly in front of (middle) the JUNGFRAU 4M detector, is equipped with (right) inline and 90° microscopes for sample visualization and alignment. Components are labelled as follows: A the injection rod funnel receptor, B the beam guard collimation straw, C the helium atmosphere cube, D the inline microscope camera, E the 90° (side) microscope camera, F the vacuum (or helium) flight tube, G the detector splatter guard with integrated direct beam guard, H the helium input line, I the laser and illumination in-coupling and J the JUNGFRAU 4M detector. Red arrows indicate the beam direction.
