Figure 3

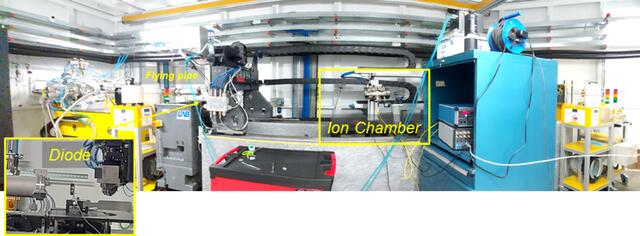

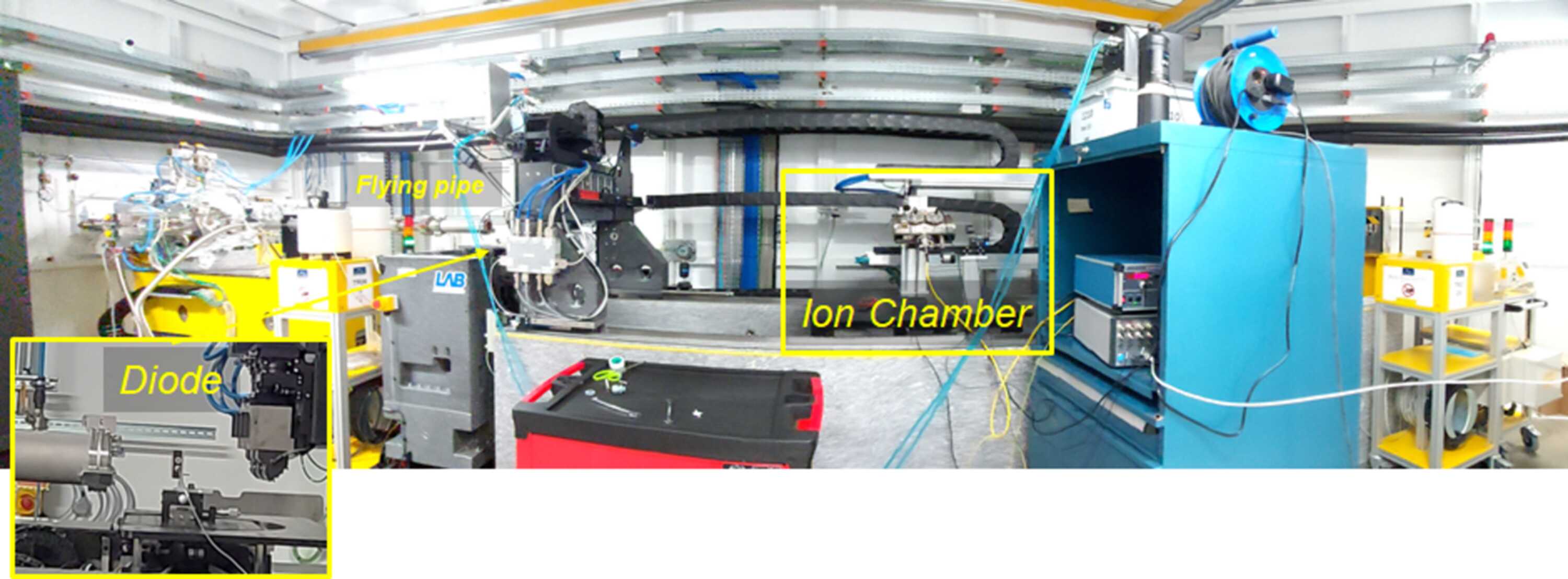

Commissioning settings in the endstation of the experimental hutch, including a Si diode on top of the tomostage, and in front of the detector to minimize the air scattering. For further calibration of the diode at energies above 20 keV, an ion chamber filled with 70% N2 and 30% Kr has been placed on top of the auxiliary table.
