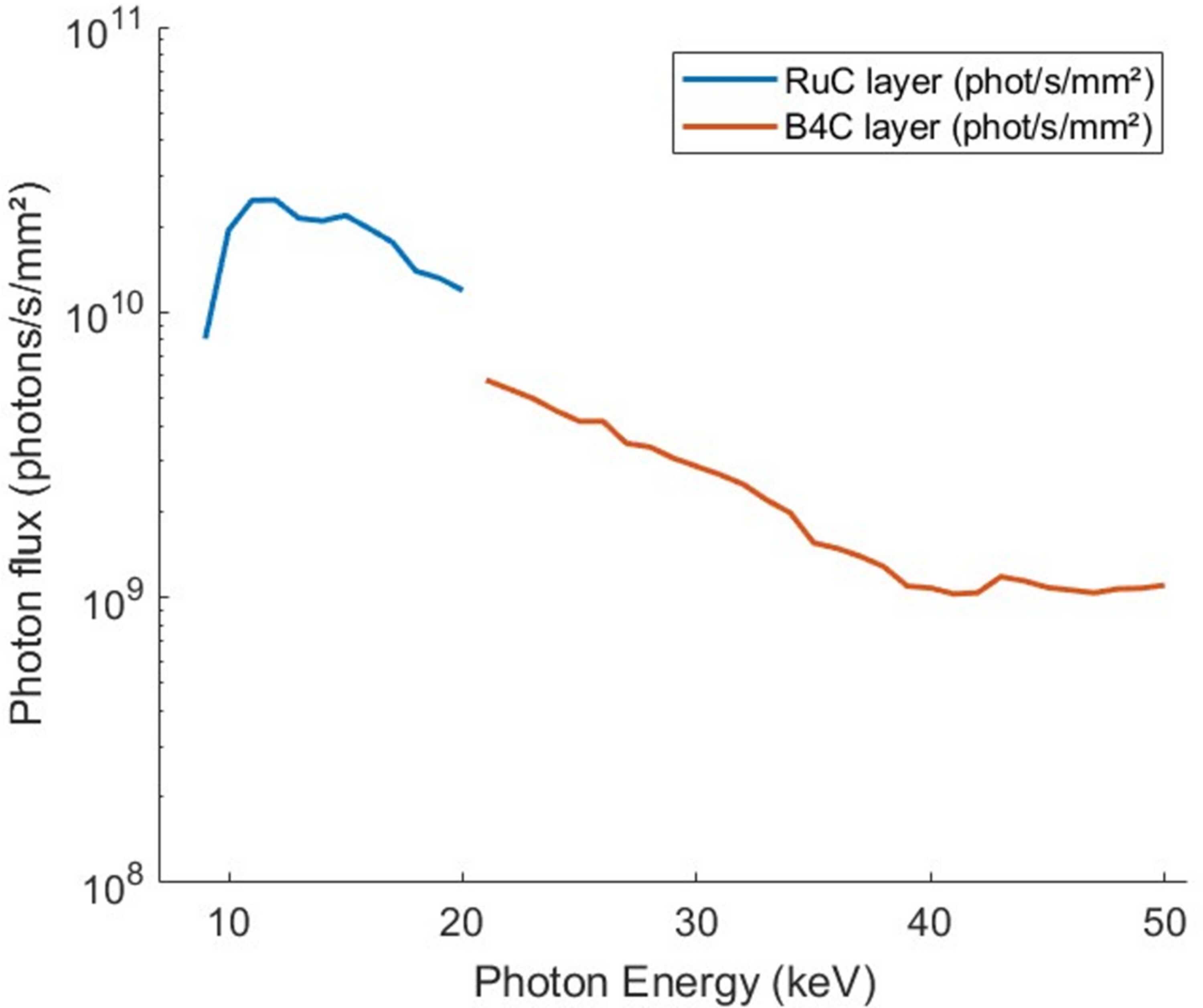

Figure 4
Comparison of the measured photon flux using a Si diode placed at the sample position when using the RuC mirrors of the monochromator (blue curve) and W/B4C mirrors (red curve). Filter combinations: 0.5 pyro + 1.1 CVD + 1C (the numbers before the symbols represent the material thickness in mm and the symbols correspond, respectively, to material type, i.e. pyrolithic graphite, diamond windows and carbon).
