Figure 1

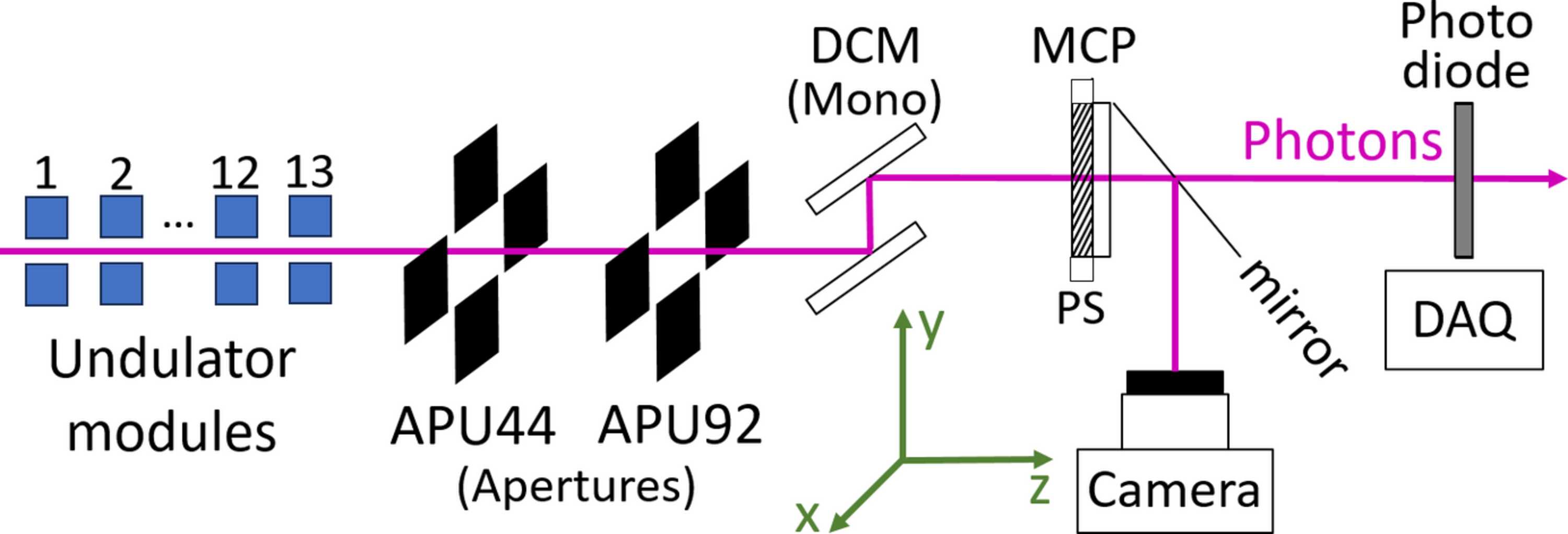

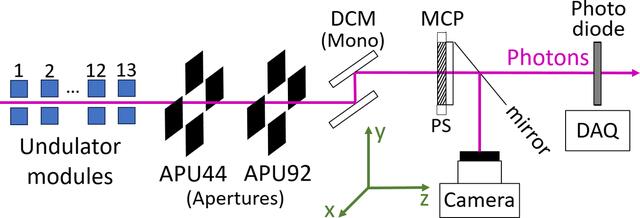

Sequence of photon beam instruments in the Aramis beamline and the Bernina endstation. From left to right: 13 undulator modules; variable-aperture slits (APU44 and APU92) for photon orbit definition; double-crystal monochromator (DCM) for wavelength selection; double-stage multi-channel plate (MCP) with a phosphorus screen (PS) and camera for profile monitoring; and silicon photodiode for direct intensity measurement, via a data acquisition system (DAQ) (used only during the commissioning period). All devices can be individually removed from the beamline to avoid obstructing the photon path.
