Figure 12

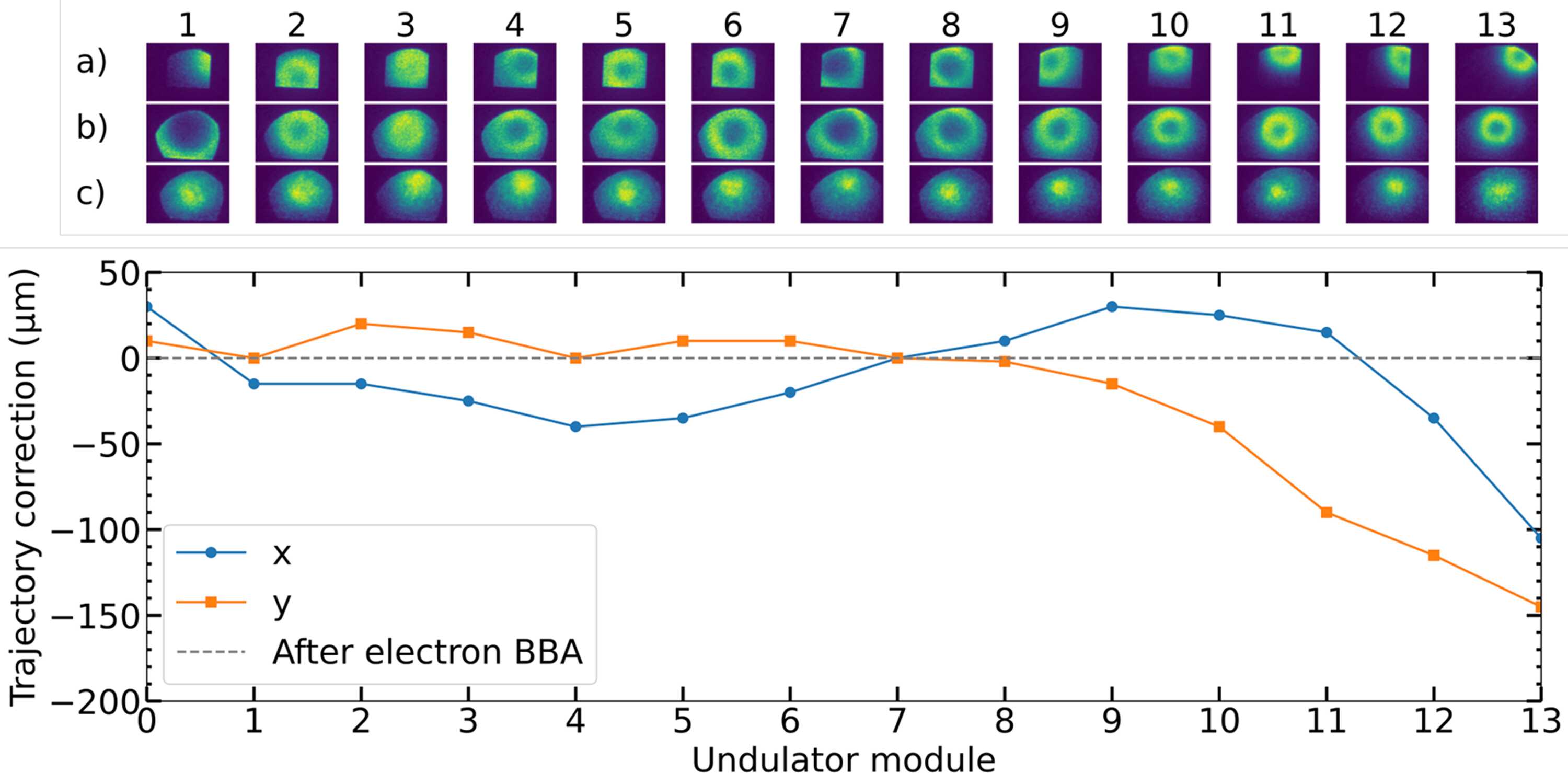

Top: spatial distribution of undulator radiation (indicating FEL alignment and K calibration) from each of the 13 undulator modules as seen by the MCP downstream: (a) after the e-BBA, (b) after the subsequent p-BBA, and (c) after application of the K calibration. Bottom: changes in electron trajectory between e-BBA and p-BBA. |
