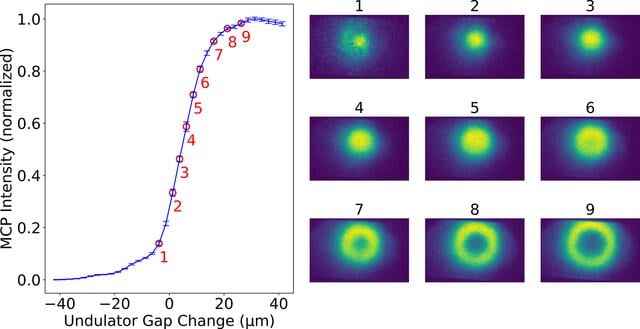

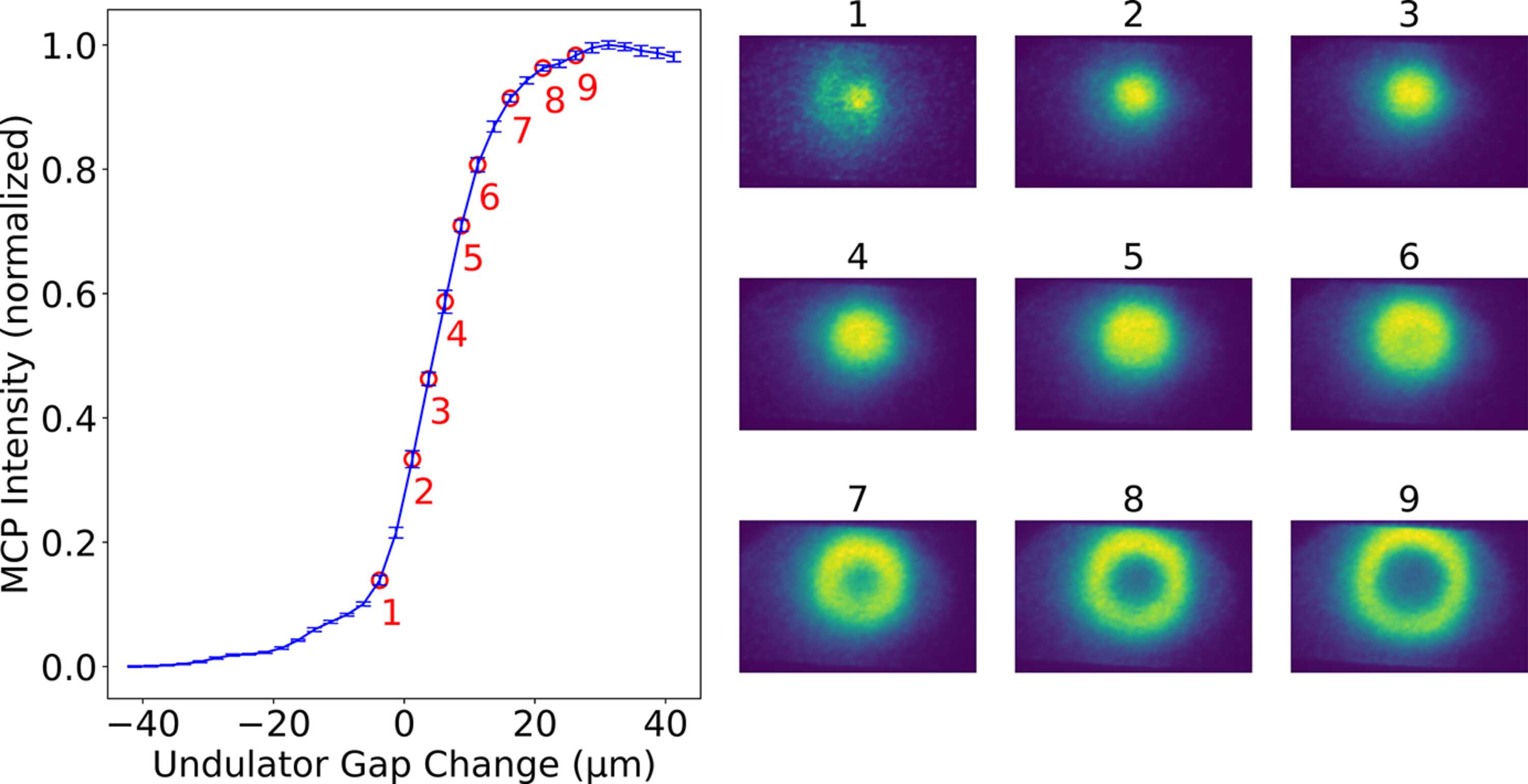

Figure 2
MCP intensity versus undulator gap scan at 10.8 keV photon energy (left). Red numbers indicate the gap positions corresponding to the MCP images shown on the right (averaged over 25 shots). The image sequence illustrates the evolution of the transverse profile during the gap scan around a K value of 1.4. The reference frame is arbitrarily set around an initial guess of the gap.
