Figure 3

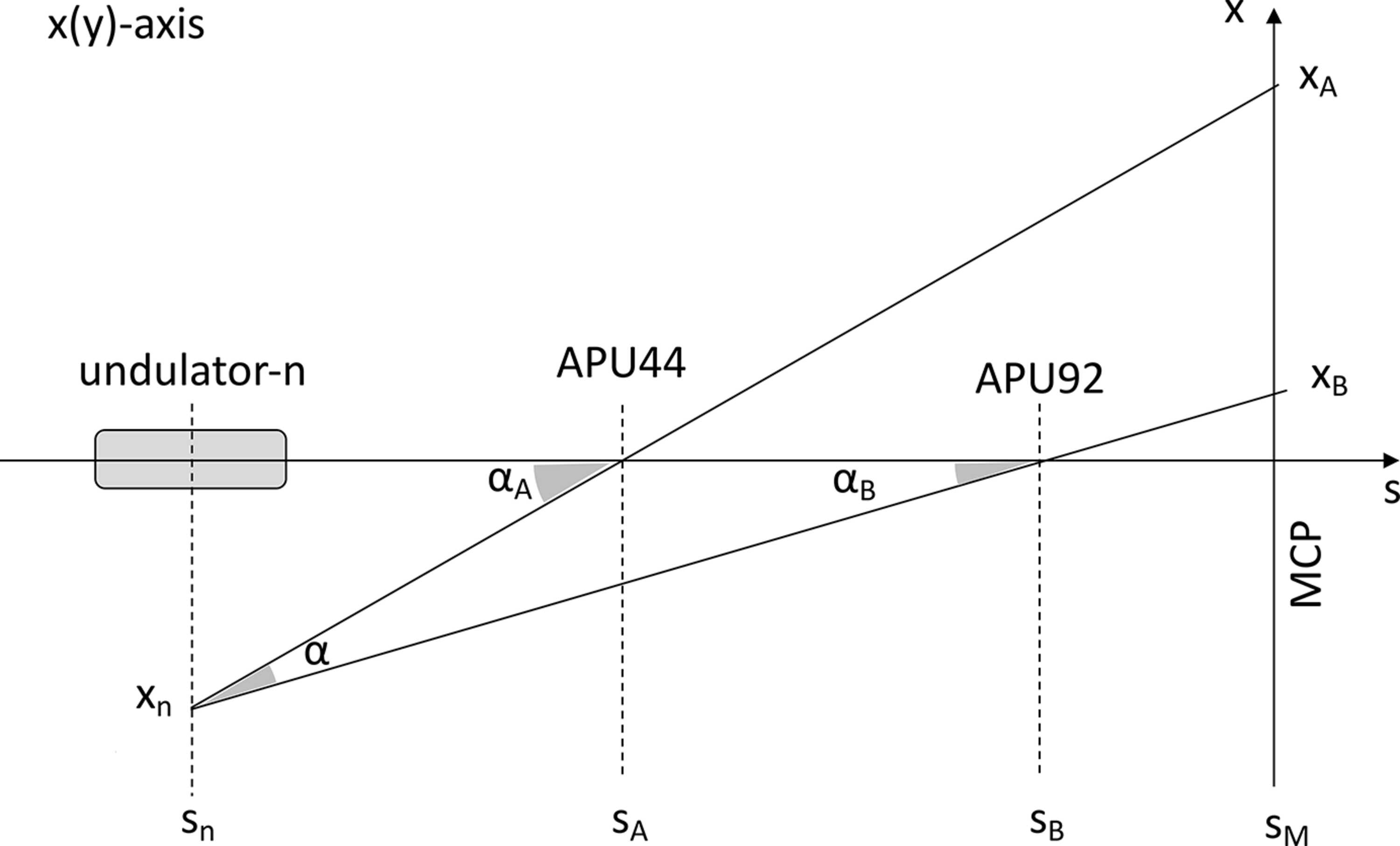

Schematic of the source point triangulation concept (horizontal plane): the undulator module source is imaged twice on the MCP screen, first with slit APU44 (A) closed and later with slit APU92 (B) closed. Similar considerations can be applied to the vertical plane.
