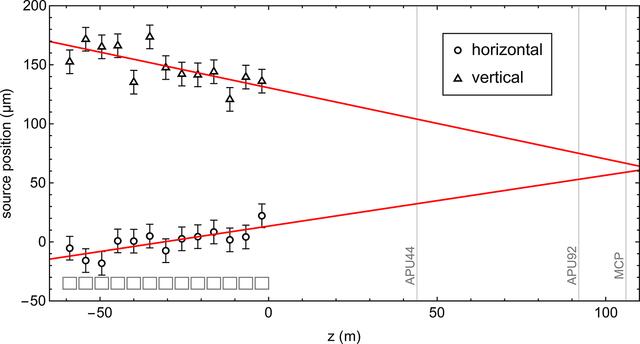

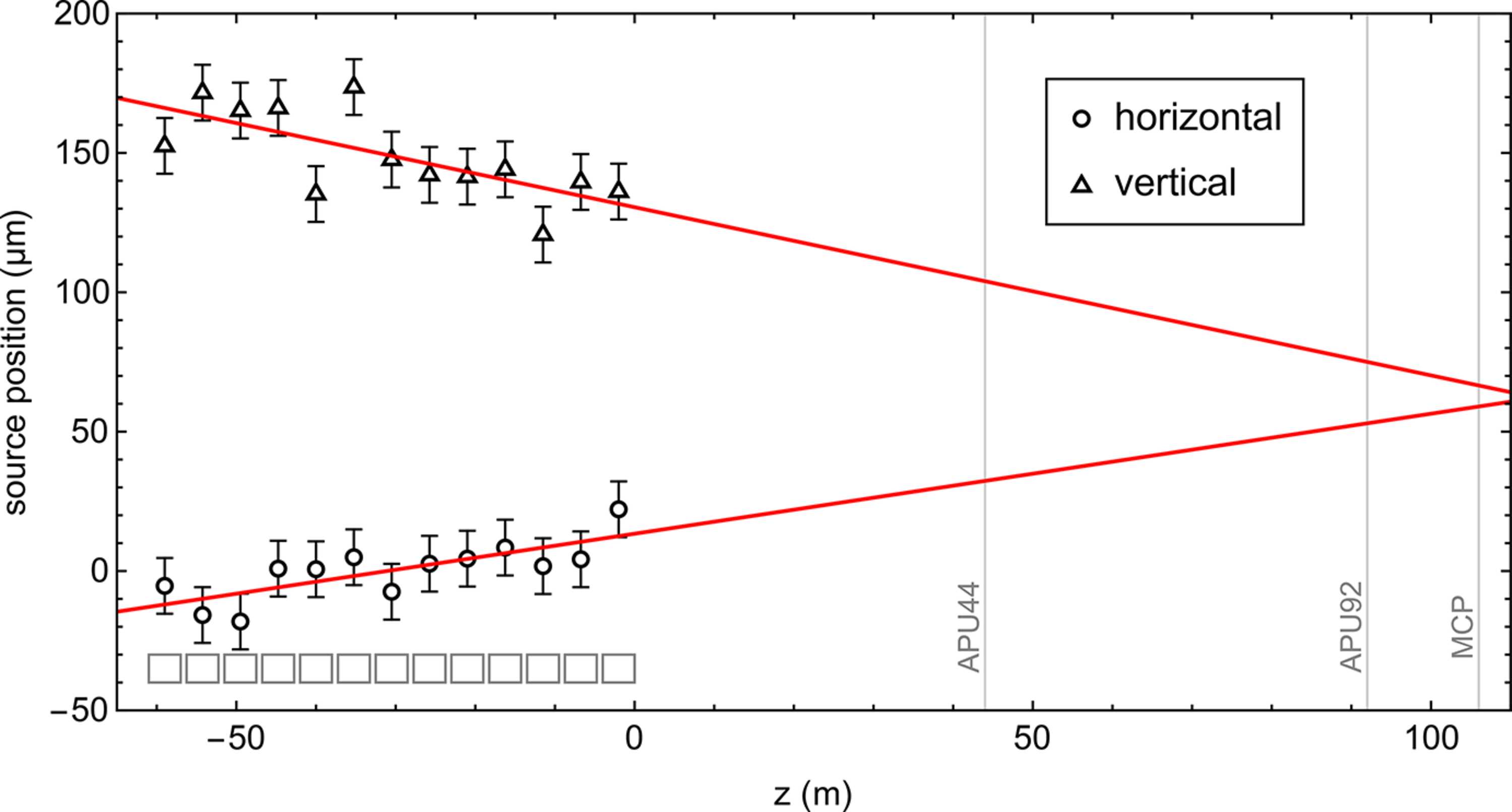

Figure 4
Source point analysis of the undulator modules along the Aramis beamline applying the described method. The horizontal and vertical positions are shown with an associated uncertainty of ±10 µm, and their linear fits are superimposed as solid red lines. The z positions of the undulator modules are indicated by gray rectangular boxes, the locations of the apertures and the MCP are marked by vertical lines.

Journal logoJOURNAL OF
SYNCHROTRON
RADIATION
ISSN: 1600-5775
Volume 33| Part 1| January 2026| Pages 32-43
https://doi.org/10.1107/S1600577525010227
