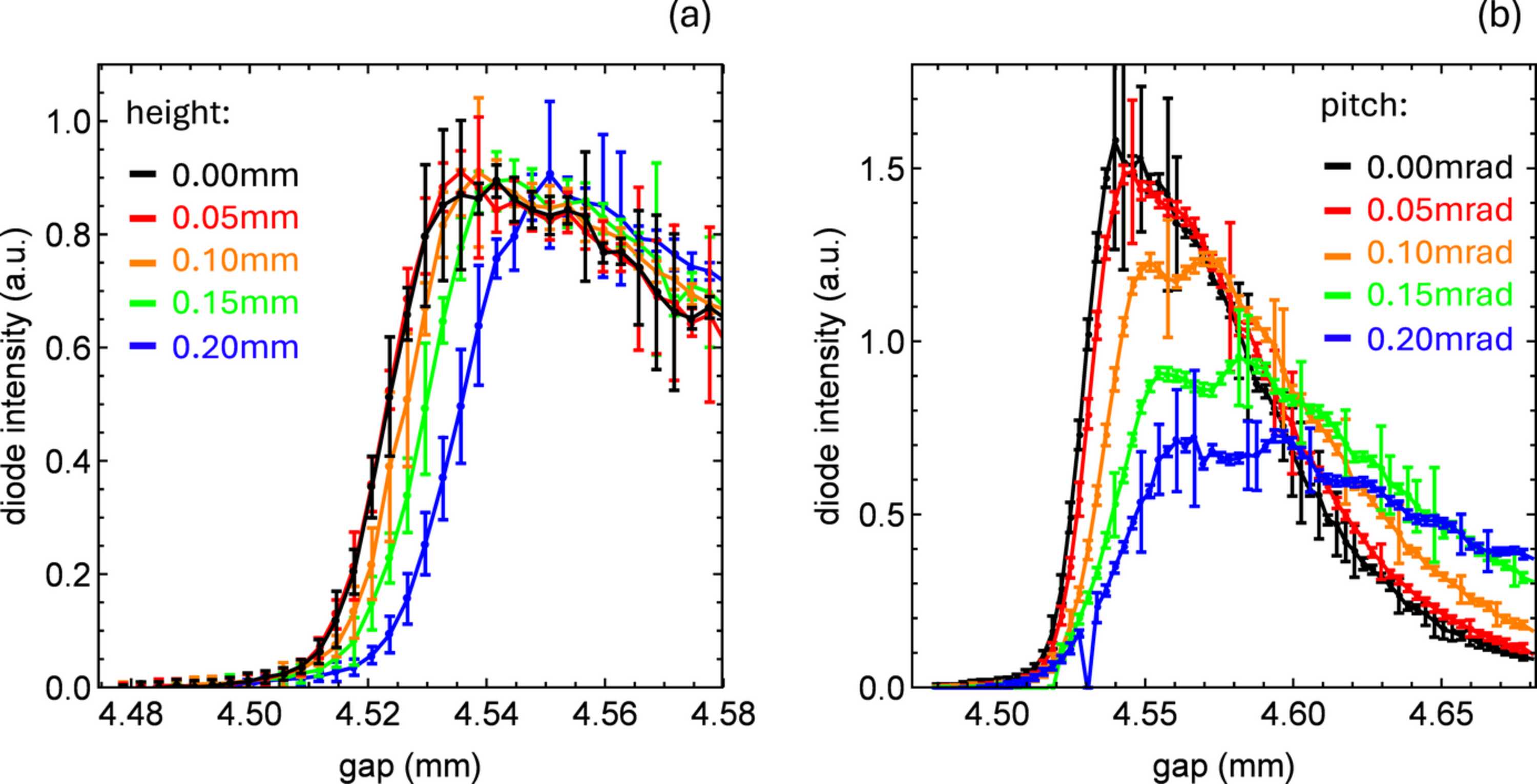

Figure 5
Gap scans at fixed photon energy set by the monochromator performed (a) at different heights and (b) at different pitches. The zero height and zero pitch correspond to the undulator module center, which was determined prior to this measurement. Negative values are omitted for clarity, as they are identical to their positive counterparts due to the field's symmetry about the center.
