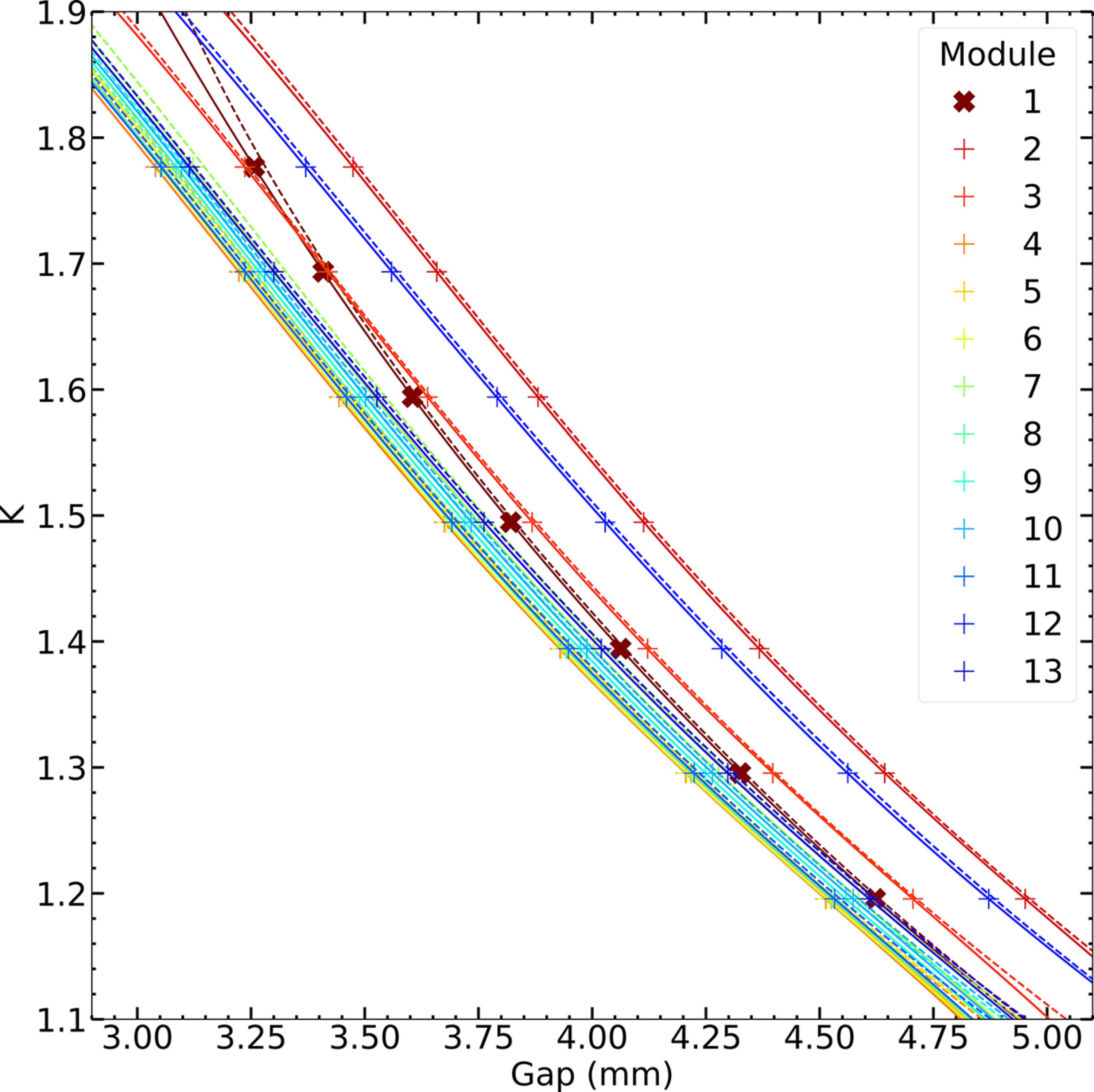

Figure 9
Final result of the K calibration procedure carried out in November 2024. The plot shows the K values (plus signs) as a function of the undulator gap (center of the error function fit) for each undulator module. For the interpolation a fourth-order polynomial fit is used. Solid lines mark the latest calibration fits, dashed lines show the previous calibration fits for comparison.
