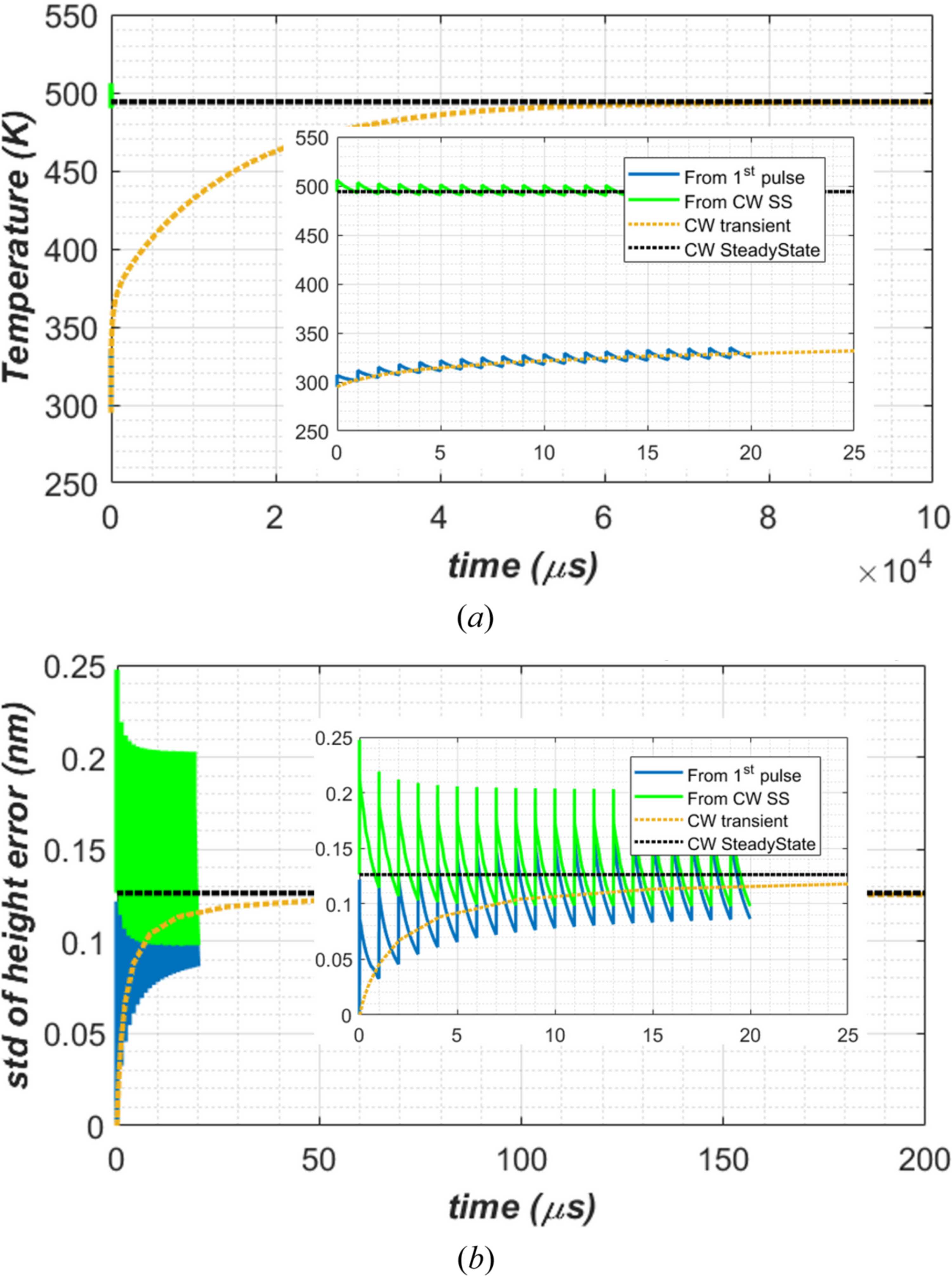

Figure 6
Pulse-by-pulse transient responses to the first XFEL pulses: (a) temperature at the centre of the footprint, (b) the standard deviation of the height error of the beam footprint on the diamond crystal over 2×FWHM length, 1 MHz repetition frequency, 0.262 mJ pulse energy. Two initial conditions were used in the simulation: (i) `From 1st pulse', where the crystal was at room temperature, (ii) `From CW SS', steady-state simulation results with average XFEL power. To guide the visualization, the results of steady-state and transient analyses with average power of 262 W (CW case) are also plotted in dashed lines.
