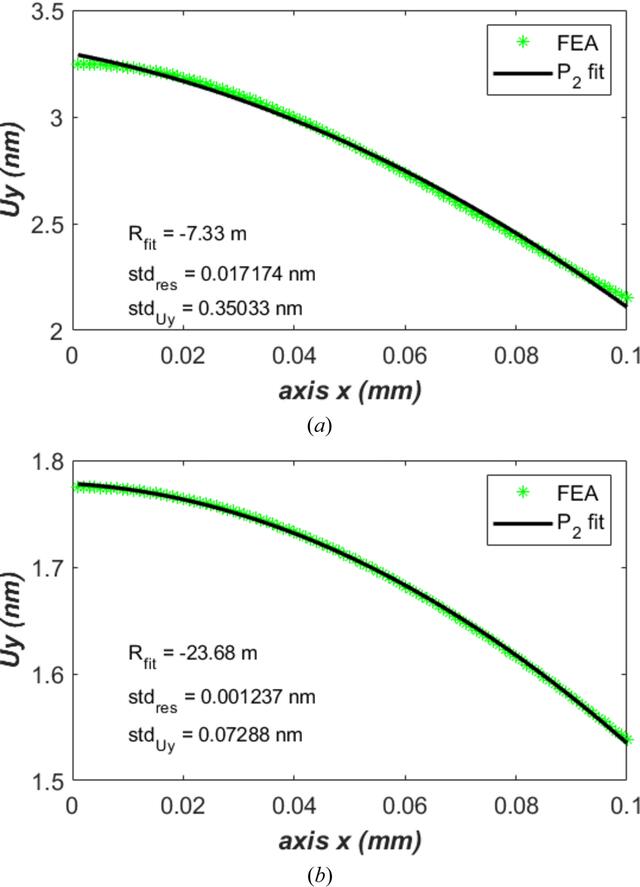

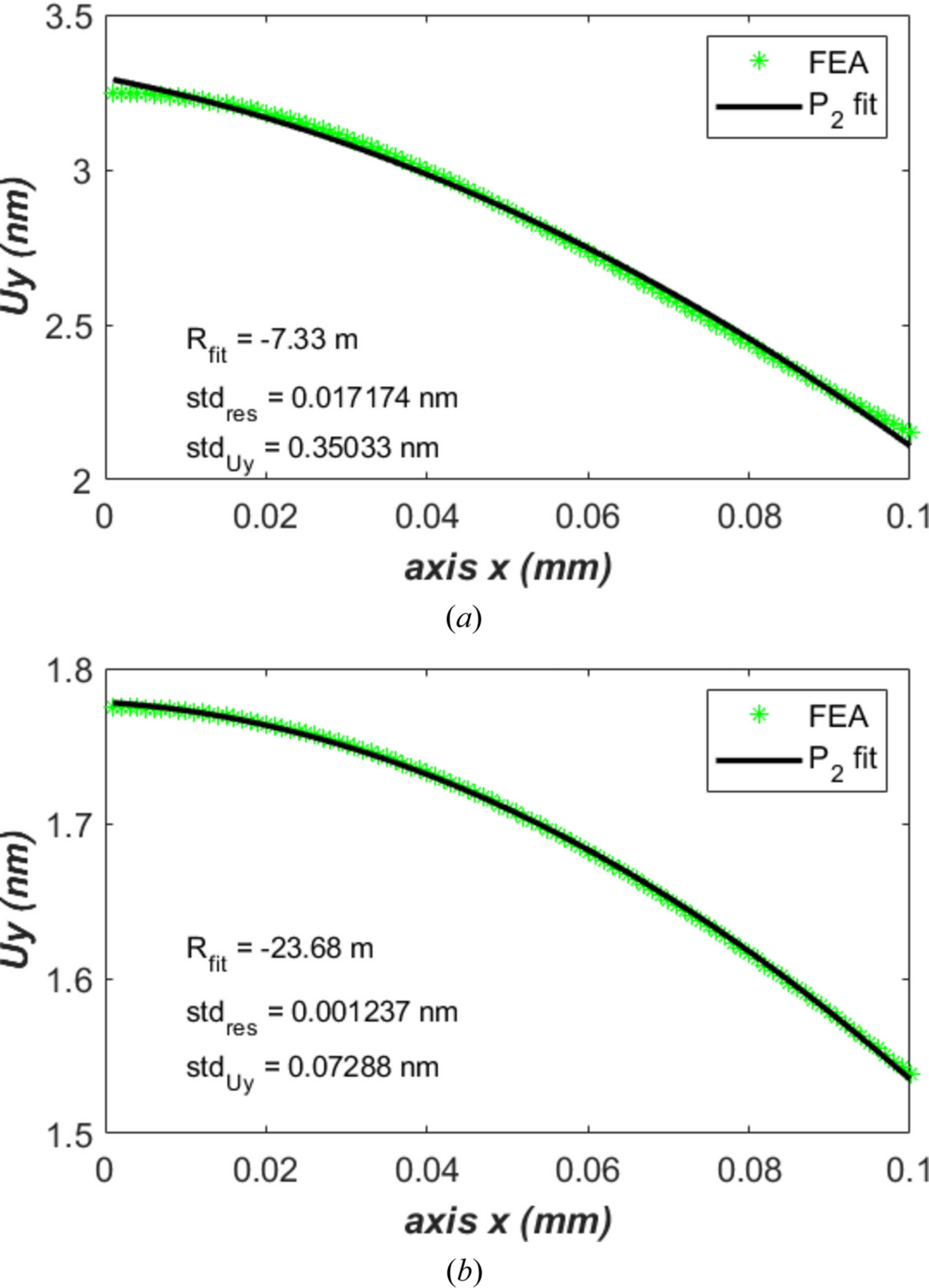

Figure 9
Vertical displacement Uy along the beam footprint and the best fit polynomial P2 for the case of water cooling, repetition time tper = 10 µs: (a) the results at 1st turn time 1 µs after the XFEL pulse; (b) for the results at period end time 10 µs.
