Figure 2

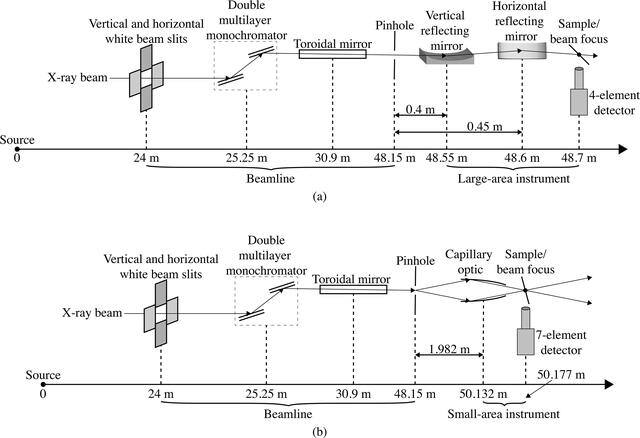

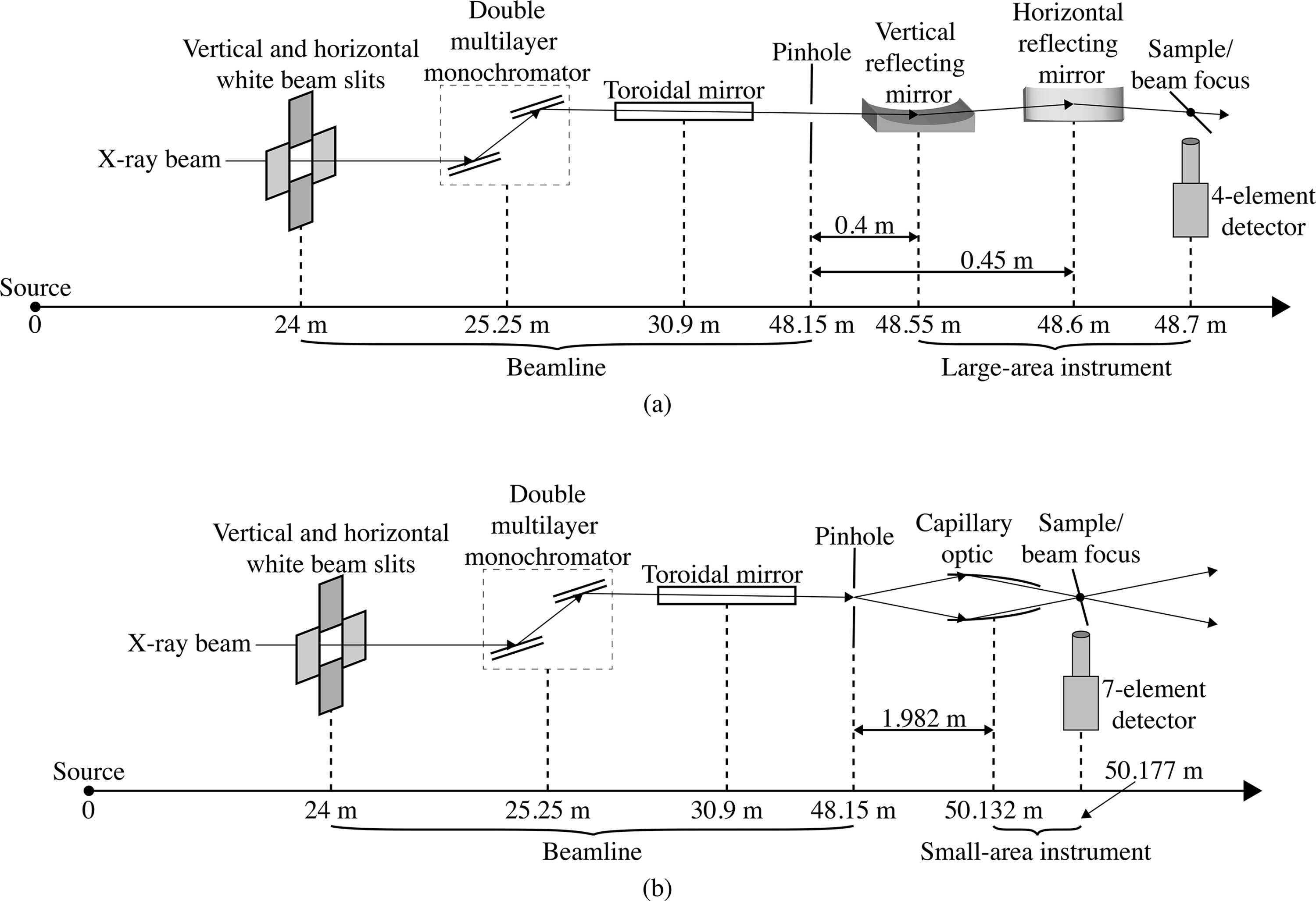

Layout of the 8-BM-B beamline when used with both a pre-existing KB mirror/large-area instrument setup (a) and a new, additional capillary/small-area instrument (b) located in the experimental enclosure. Both schematics show the location of the double multilayer monochromator (DMM), and the toroidal mirror intended to image the X-ray beam from the storage ring to the exit slit position. The beam size is then set using a pinhole as a beam-defining aperture (BDA). The KB mirror setup is for scanning sample fields up to several centimetres across at about δres = 10.5 µm spatial resolution, and the capillary optic setup is for δres = 6.5 µm spatial resolution over smaller fields of view (Section 2.1[link]).
