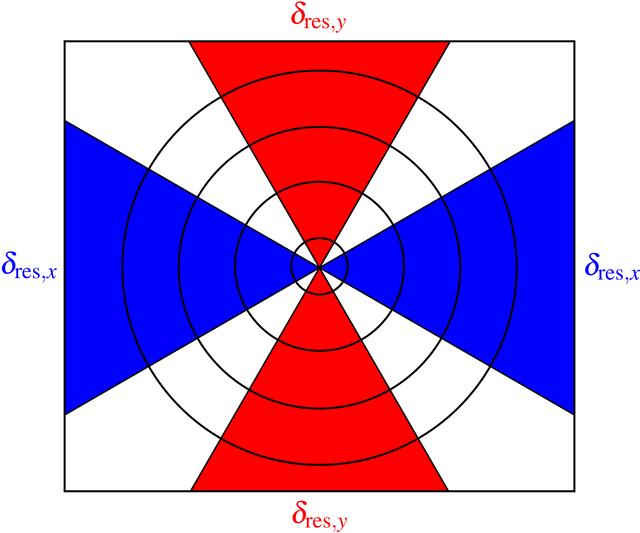

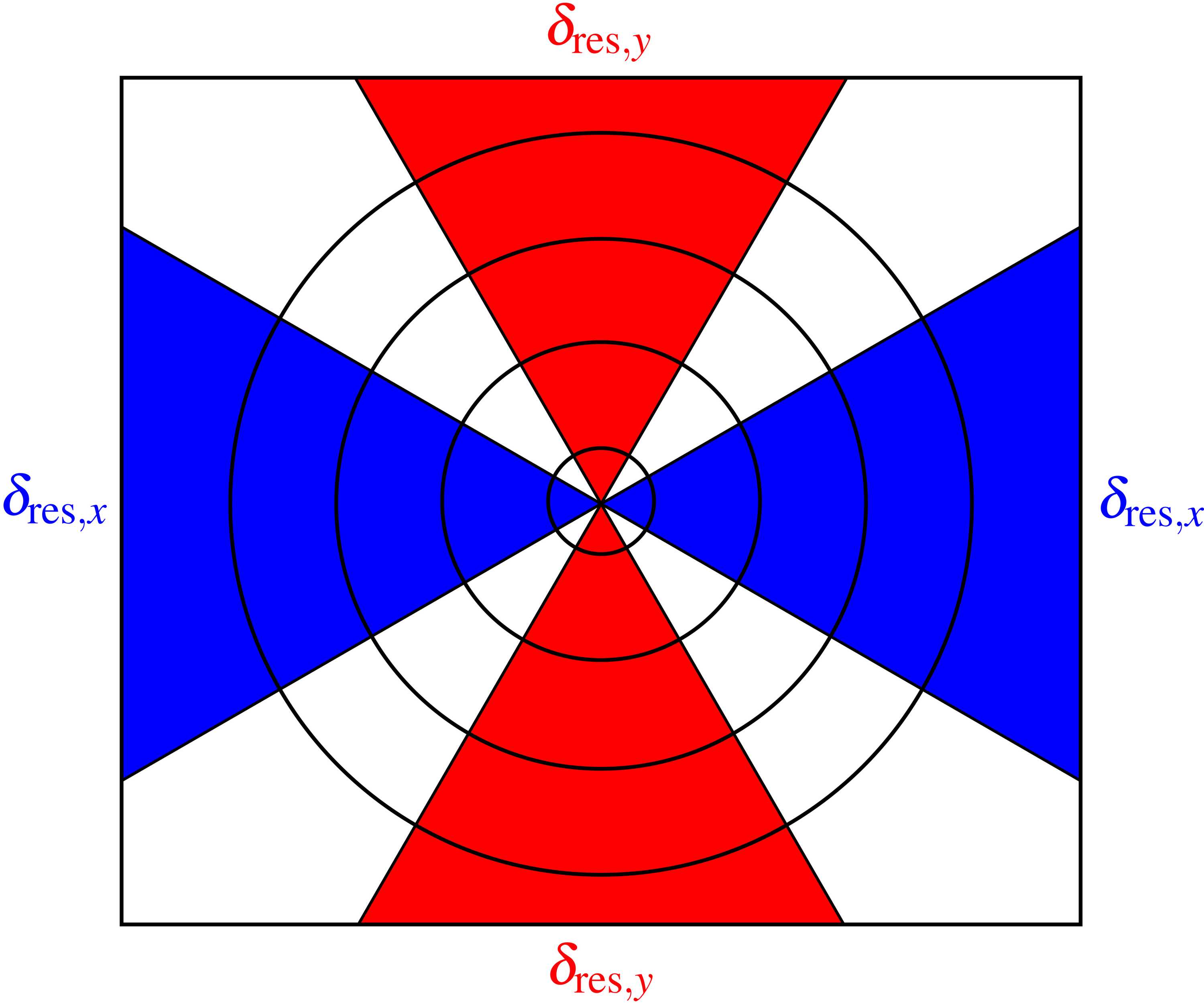

Figure 7
When images have asymmetry in their spatial resolution, one can define azimuthal angle ranges about the x and y axes (shown here as blue and red regions, respectively) to obtain separate estimates of spatial resolution of δres,x and δres,y. We used azimuthal angle ranges of ±30° about the x and y axes as a compromise between the mixing of ux and uy components and having too few `spatial frequency pixels' in each Fourier direction for each circle being averaged over.
