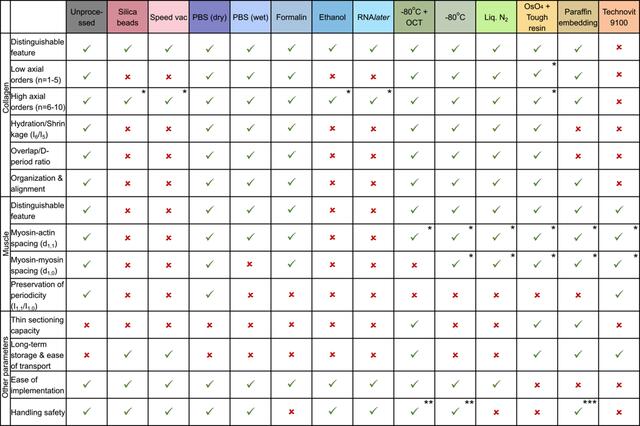

Figure 12

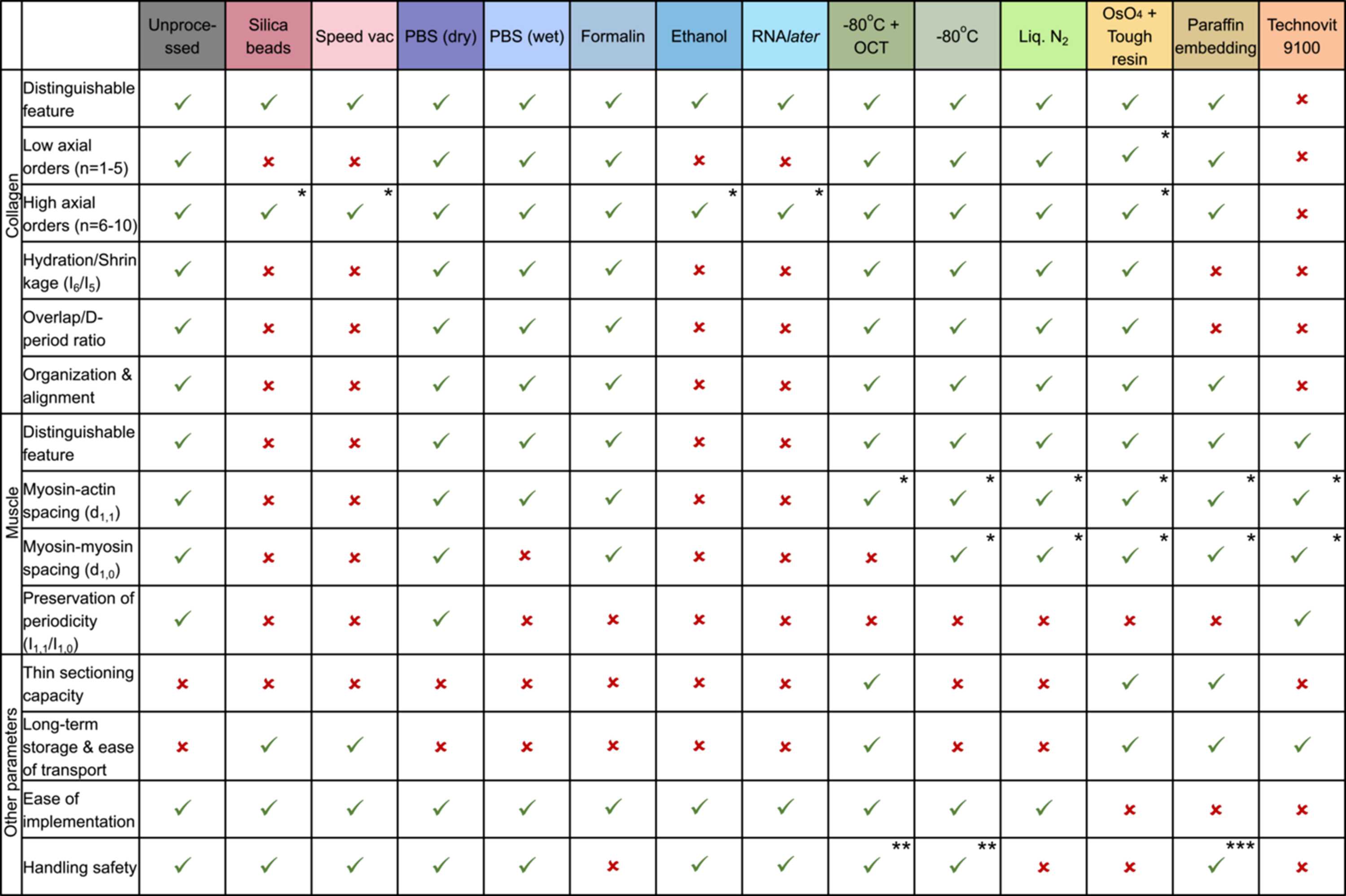

Summary table showing the effectiveness of different sample-preservation methods depending on the parameters to be considered for the experiment. Notes: (*) features are visible but show significant differences from the unprocessed sample; (**) generally safe to handle but snap freezing requires handling with liquid nitro­gen/dry ice; (***) safe to handle post embedding, but often involves formalin fixation as a pre-embedding step.
