Figure 3

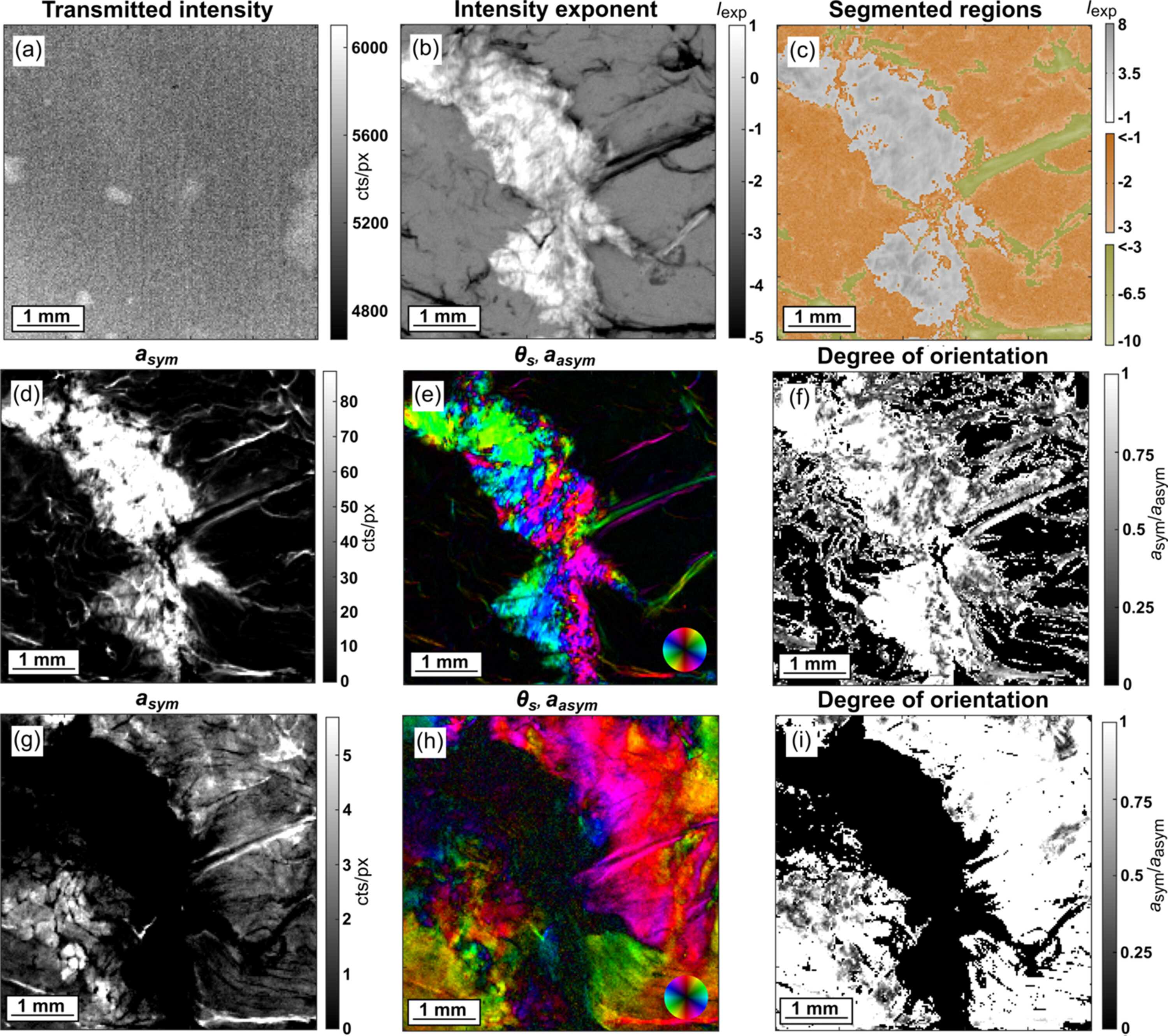

Scanning SAXS images of unprocessed (control) meat sample. Image plots showing (a) transmission, (b) intensity exponent in the range q = 0.085–0.095 nm−1, (c) colour-coded segmentation of regions based on intensity exponent variation in part (b), (d) symmetric intensity, (e) hue-value representation (HSV plot with saturation = 1) of orientation of meridional scattering (θs, colourwheel) and asymmetric intensity (value) of scattering (aasym), and (f) degree of orientation, over the first-order collagen (meridional) peak with q = 0.085–0.11 nm−1. Parts (g)–(i) represent the same figures in the order of parts (d)–(f) over the d1,1 myo­fibril (equatorial) peak with q = 0.231–0.367 nm−1.
