Figure 9

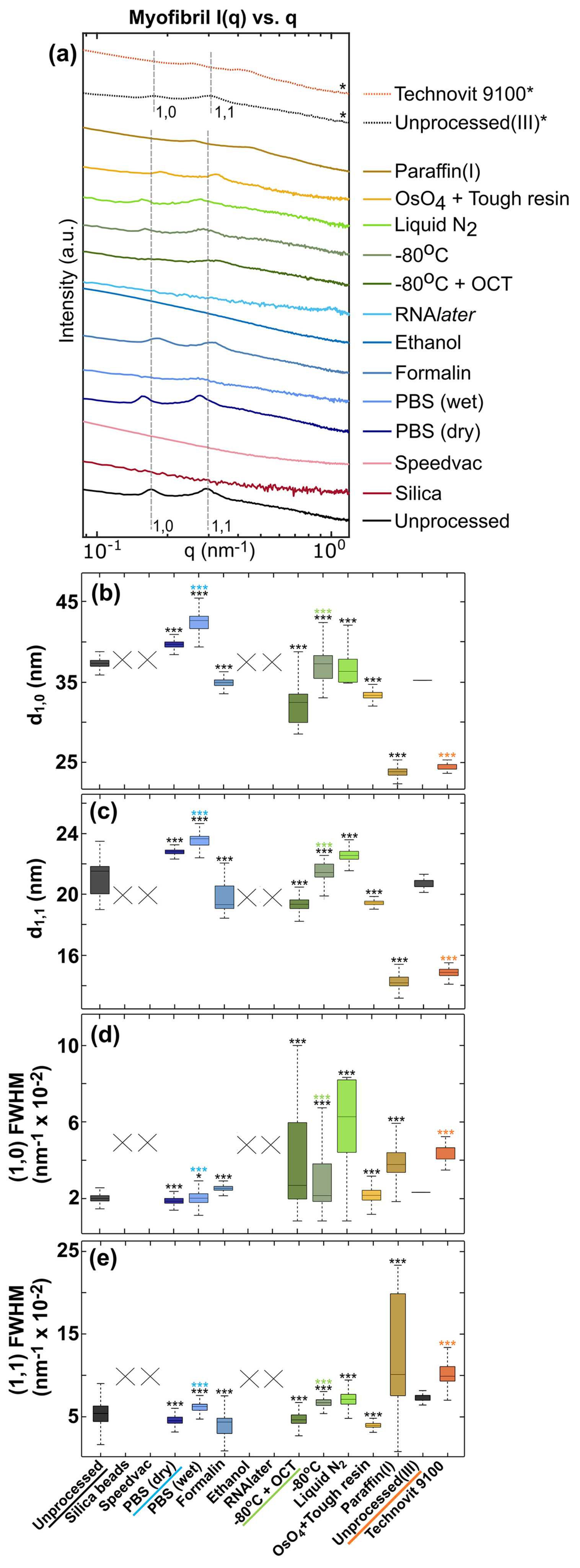

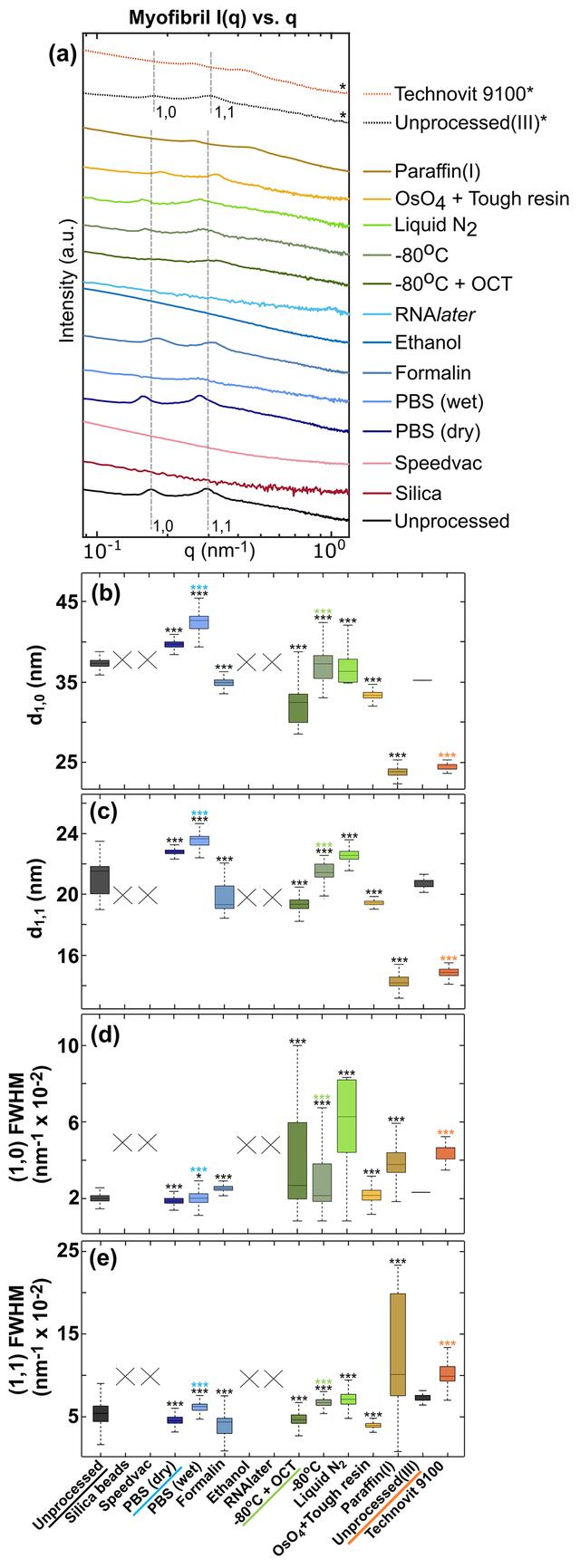

Analysis of muscle equatorial scattering. (a) The typical equatorial scattering intensity I(q) versus q plot obtained for all samples. The dashed vertical lines in gray show the d1,0 and d1,1 peaks for the unprocessed control sample. The sample types are mentioned on the right in the same order as the plots. Plots are shown for the Technovit 9100-embedded sample and its reference sample, unprocessed(III), with the asterisk (*) corresponding to a different sample source. (b, c) Box plot distributions of muscle equatorial peaks, d1,0 and d1,1, respectively, from the segmented muscle region in samples. (d, e) The corresponding peak-width (FWHM) distributions. Statistical significance was tested against the underlined samples (colour-coded, similar to Fig. 6[link]) using Wilcoxon signed-rank test (`ns'/not significant → P > 0.05; `*' → P ≤ 0.05; `**' → P ≤ 0.01; `***' → P ≤ 0.001).
