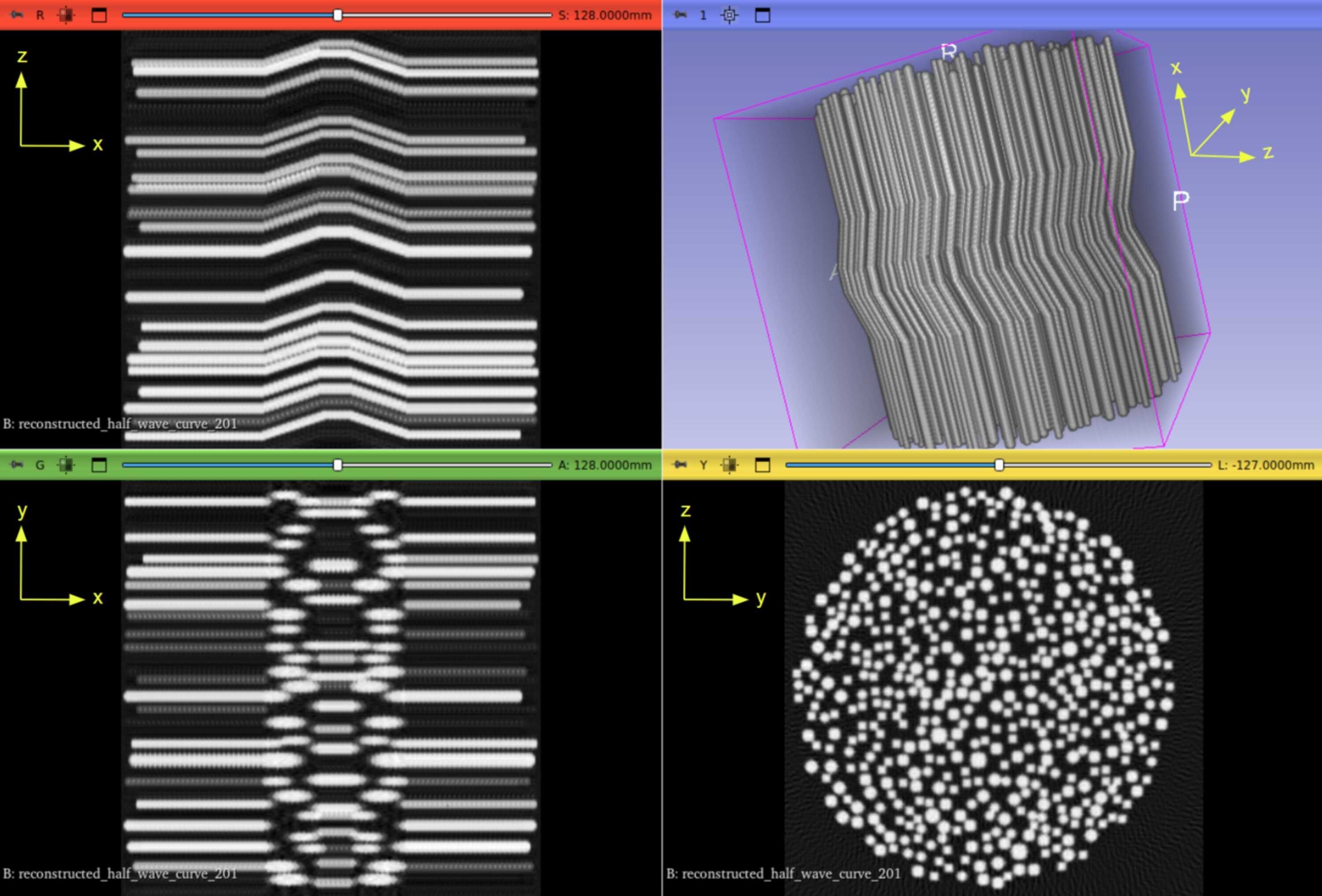

Figure 1
Visualization in the 3D Slicer software (Kikinis et al., 2014View full citation) of a synthetic fibre volume. In this example, a half-wave curve phantom volume is shown. The top left panel (red border) shows the sagittal view. The top right panel presents a 3D rendering of the full fibre volume. The bottom left panel (green border) corresponds to the coronal view, slicing the structure from front to back. The bottom right panel (yellow border) displays the axial view, a cross section from top to bottom, highlighting the circular distribution of fibres.
