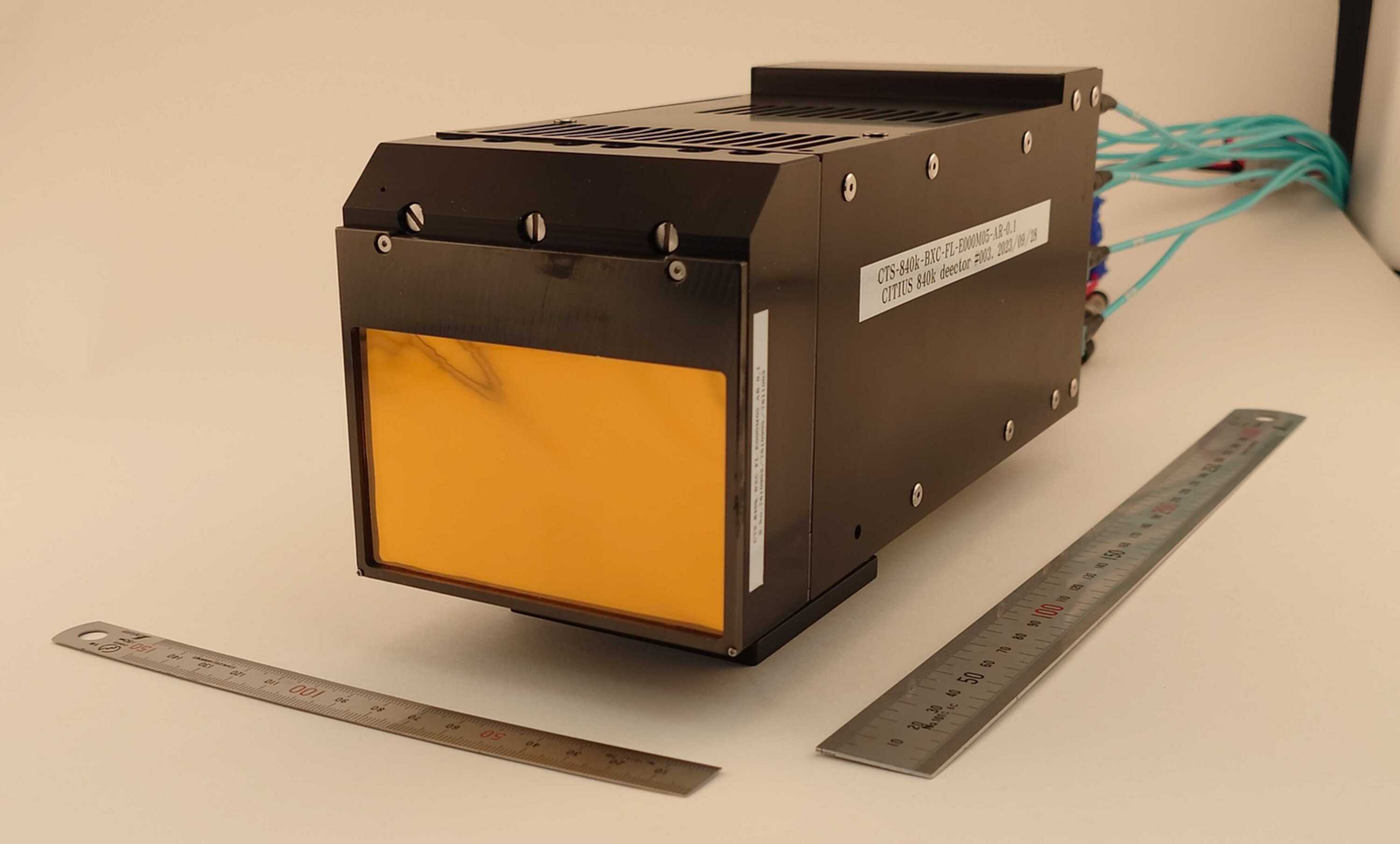

Figure 2
Photograph of the 840 kpixel CITIUS detector used in the QEGS experiments at BL35XU of SPring-8. The detector has an entrance window made of an aluminized polyimide film. Three sensors are integrated inside the housing to provide an imaging area of 89.3 mm × 52.9 mm. The 150 mm and 300 mm rulers indicate the physical dimensions of the detector module. |
