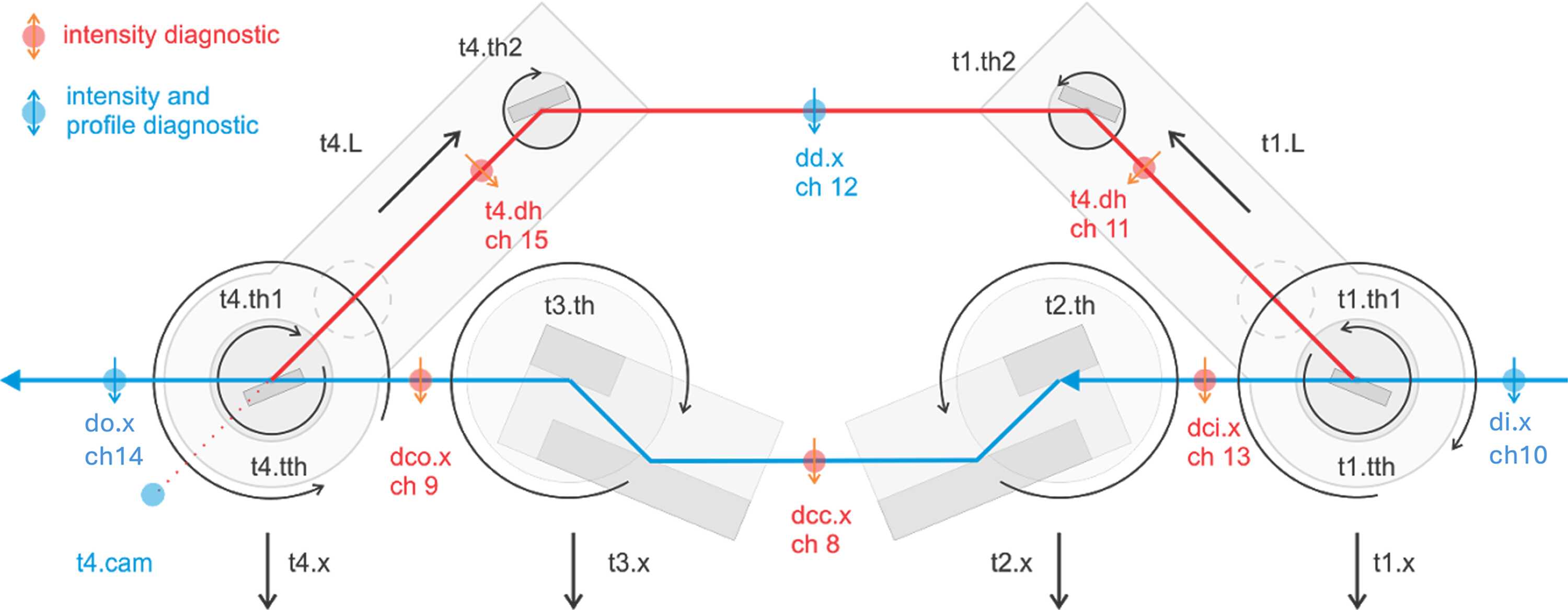

Figure 1
Schematic of the HXRSND with the channel cut branch in blue and the delay branch in red. The X-ray beam propagates from right to left. The arrows indicate the motorized degrees of the system. In addition, each crystal along the delay branch has `chi' adjustment which corresponds to rotation about the tangential vector of the crystal surface (not shown). The red and blue dots correspond to locations of beam diagnostics, as noted in the legend at the top left of the figure. Figure re-used with permission from Zhu et al. (2017  ). |
