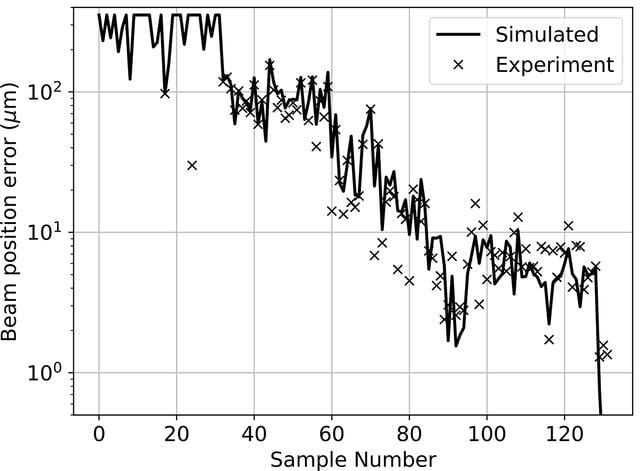

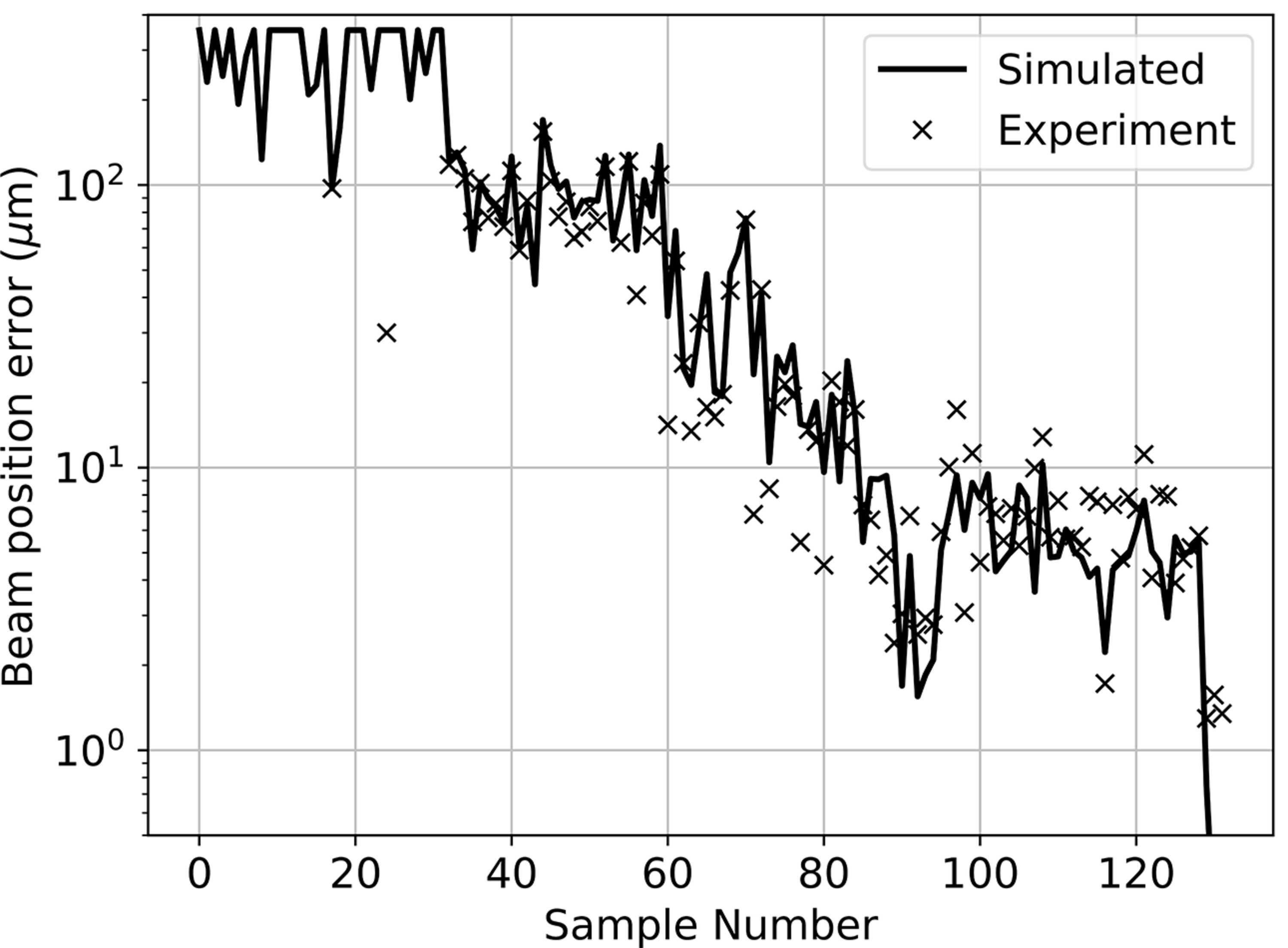

Figure 2
Comparison of the predictions of the beam position error from the wave-optical simulations code used in this investigation against experimental results on the HXRSND (delay branch only). Between each sample various degrees of freedom were adjusted both in experiment and also as inputs to the simulator.
