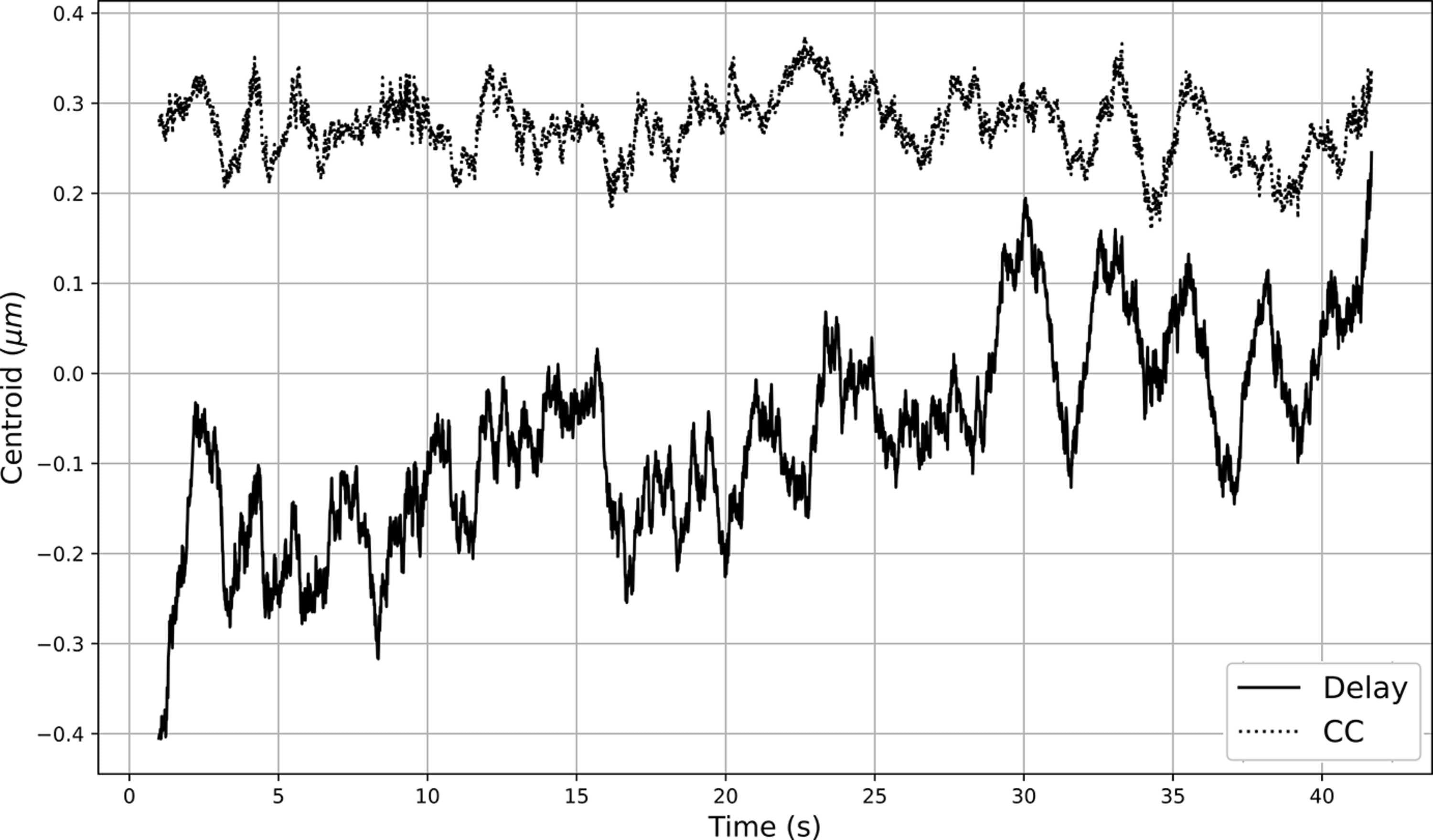

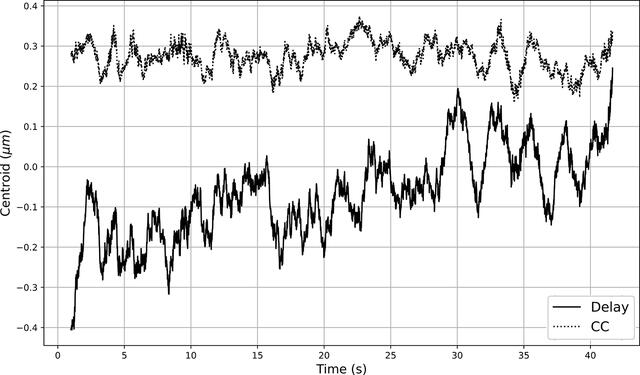

Figure 3
Visualization of the drift for the horizontal beam position error in the channel cut (CC) and the delay branches observed in an experiment using the HXRSND, without adjustment of any of the degrees of freedom. The rate of drift is observed to be ∼300 nm in 1 minute, and the standard deviation after subtracting the linear drift is 108 nm r.m.s.
