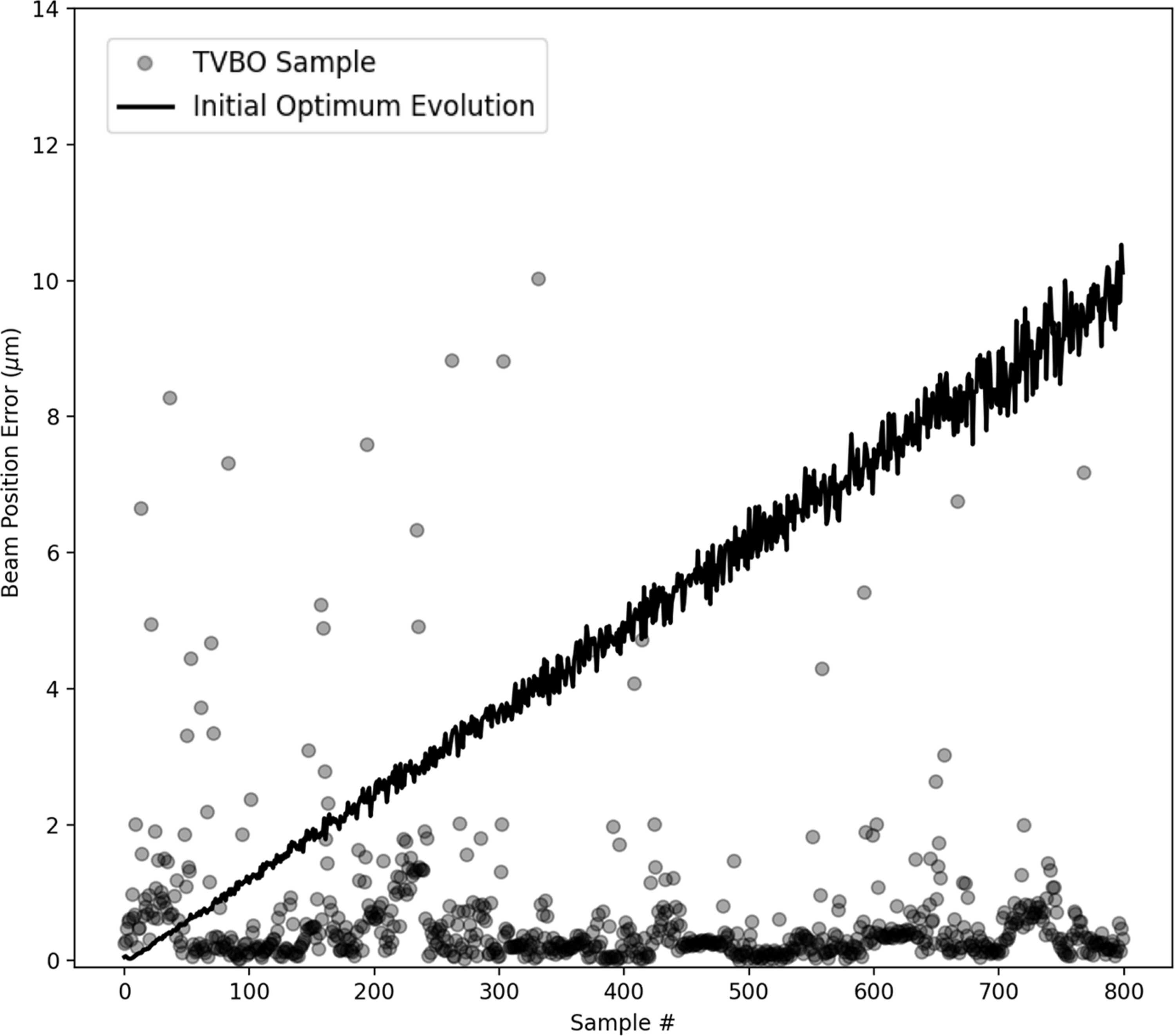

Figure 4
Results using TVBO for drift correction with a constant, linear drift model, for the beam position error in µm. The solid line reports the change in performance of the initial optimum setting due to drift. Each semi-transparent circle represents the beam position error for a single sample generated using TVBO. The transparency in the circles is used to assist the reader visualize the location and density of the points even in areas of high overlap.
