Figure 3

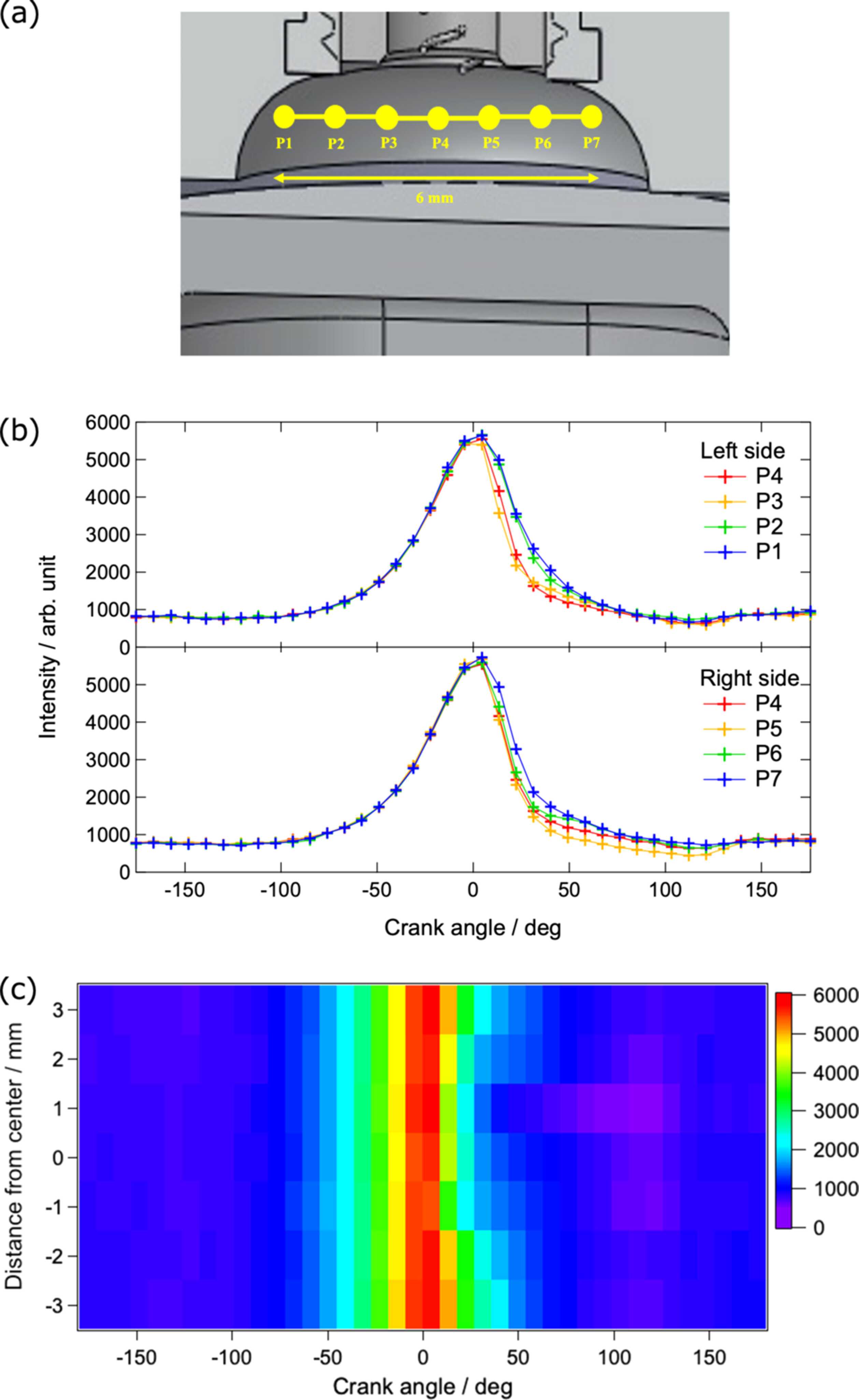

(a) Illustration of the interior of the com­bus­tion chamber, (b) crank-angle dependency of Compton-scattered X-ray intensities at positions P1–P7 and (c) corresponding two-dimensional map of the data shown in part (b). As illustrated in part (a), the measurement points in the com­bus­tion chamber, centred at P4 and spaced 1 mm apart, are indicated by yellow dots. On the vertical axis in part (c), P1 corresponds to −3 mm, P4 to 0 mm and P7 to 3 mm.
