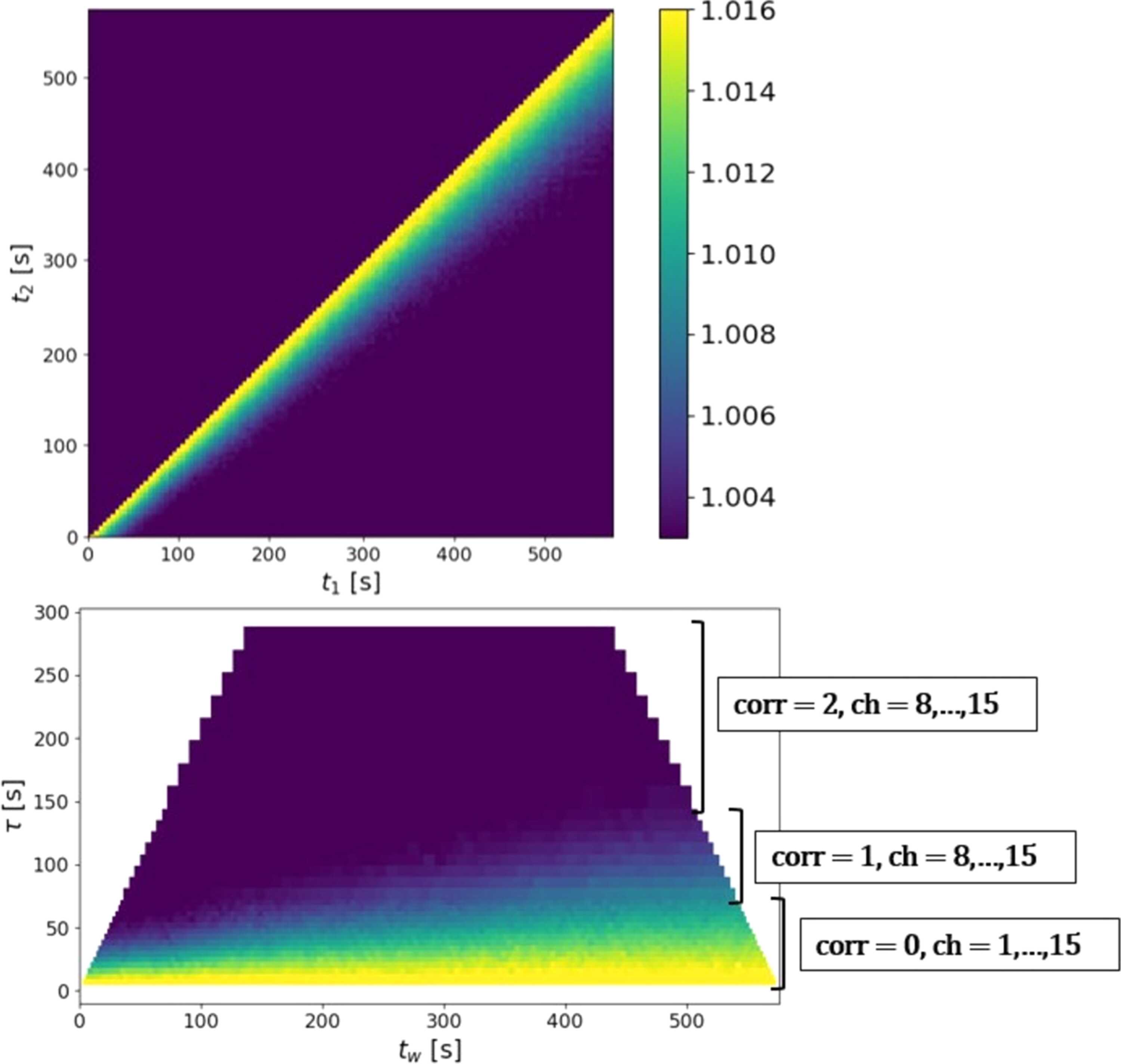

Figure 2
Comparison of the standard 2TC (top) and MT-2TC (bottom) computed for a v-Ta2O5 measurement at a low frame rate (Δt ≃ 4 s), chosen to improve the SNR (see Section 4.2[link] for details). The labels indicate which correlator and which set of channels correspond to the rows of the MT-2TC. Notably, the first correlator consists of 15 channels (the first channel is omitted, as it corresponds to the self-correlation of frames), while the other two correlators consist of eight filled channels each.
