A new reference for changes in X-ray scattering from water due to temperature changes at ambient conditions

Hanson, L.G.; Veile, T.; Schouenborg, J.F.; Nielsen, V.M.; Jørgensen, M.R.V.; Gjørup, F.H.; Frandsen, C.; Haldrup, K.

doi:10.1107/S160057752600250X

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

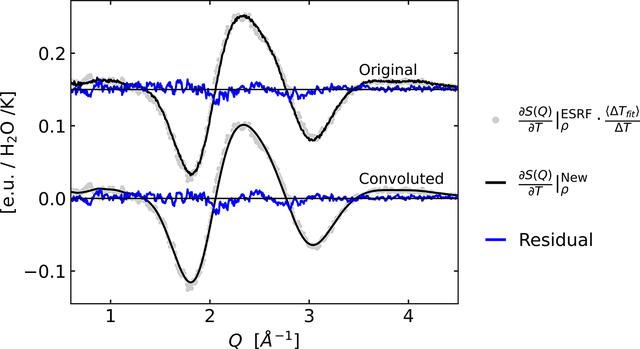

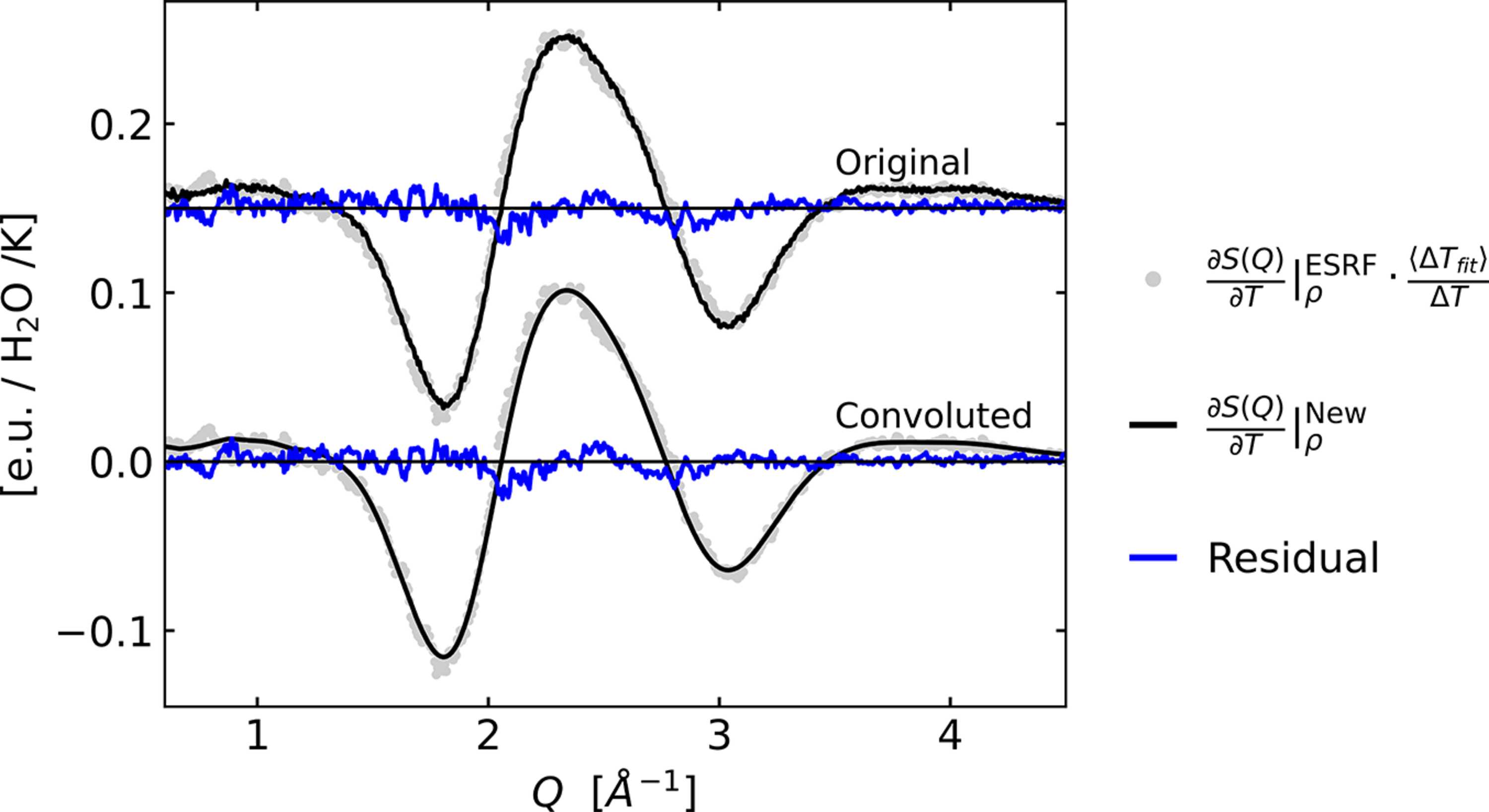

Figure 5
Comparison of difference signals $[{{\partial S(Q)}/{\partial T}}|_{\rho}^{\rm{New}}]$ acquired at DanMAX (ΔT = 3 K) with the reference signal $[{{\partial S(Q)}/{\partial T}}|_{\rho}^{\rm{ESRF}}]$ . The $[{{\partial S(Q)}/{\partial T}}|_{\rho}^{\rm{ESRF}}]$ curve is scaled by 〈ΔT_fit〉/ΔT to match the scaling of the two signals, allowing for a comparison of the shape of the two signals. The lower plot includes a convolution of $[{{\partial S(Q)}/{\partial T}}|_{\rho}^{\rm{New}}]$ to account for differences in X-ray energy bandwidth. An offset is used for clarity.

JOURNAL OF
SYNCHROTRON
RADIATION

ISSN: 1600-5775

Volume 33| Part 3| May 2026| Pages 649-657

https://doi.org/10.1107/S160057752600250X
