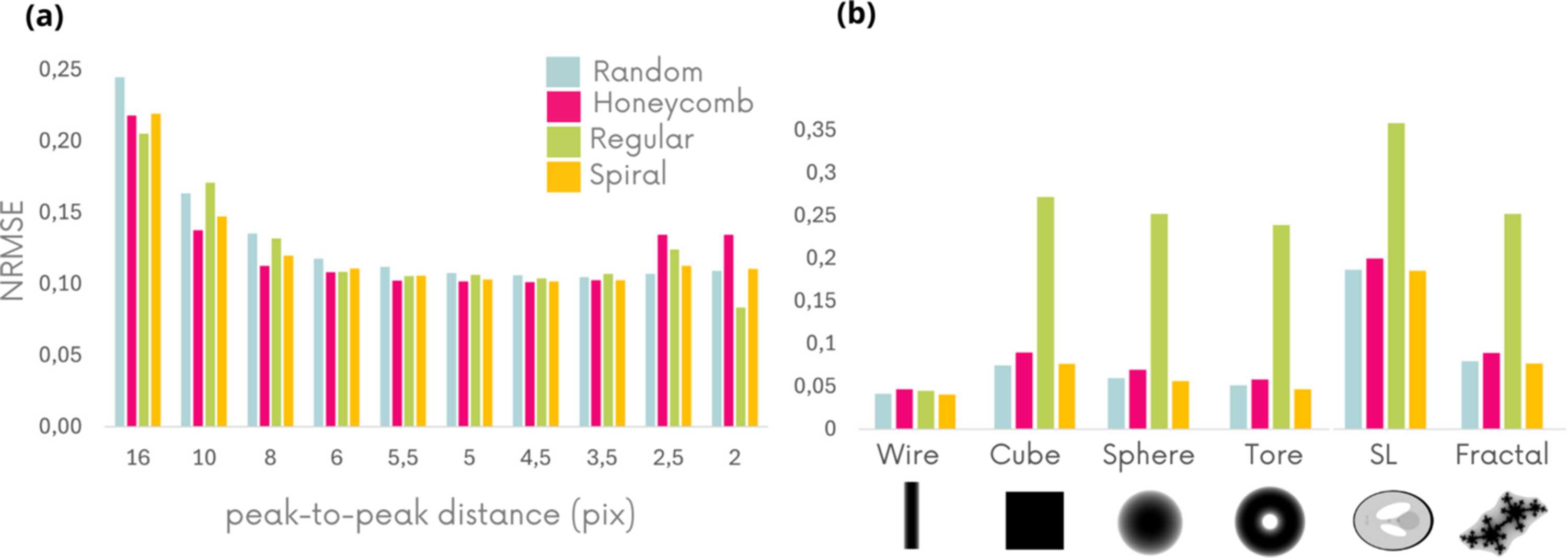

Figure 2
Simulation results. NRMSE index of the retrieved images as a function of average peak-to-peak distance between modulations on the membrane. (a) Results are obtained for the four membrane geometries on the fractal sample. The membrane is moved in two directions. (b) NRMSE index calculated on the six sample Dy images retrieved according to different membranes. The membrane is moved in one direction only. The lower the index, the better the image quality. The object images represent the thickness of the simulated samples in grayscale, as shown in Fig. 1[link](c).
