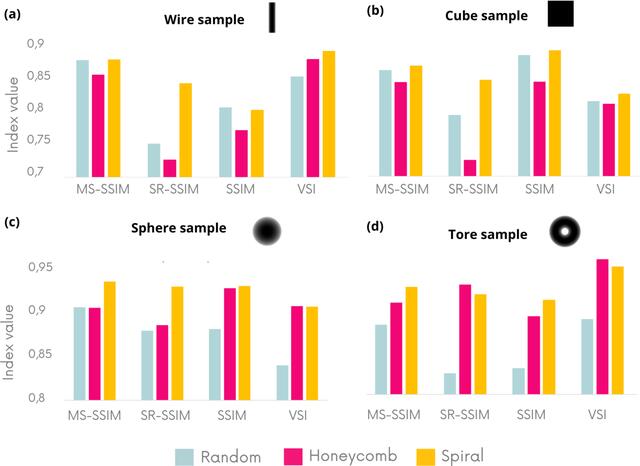

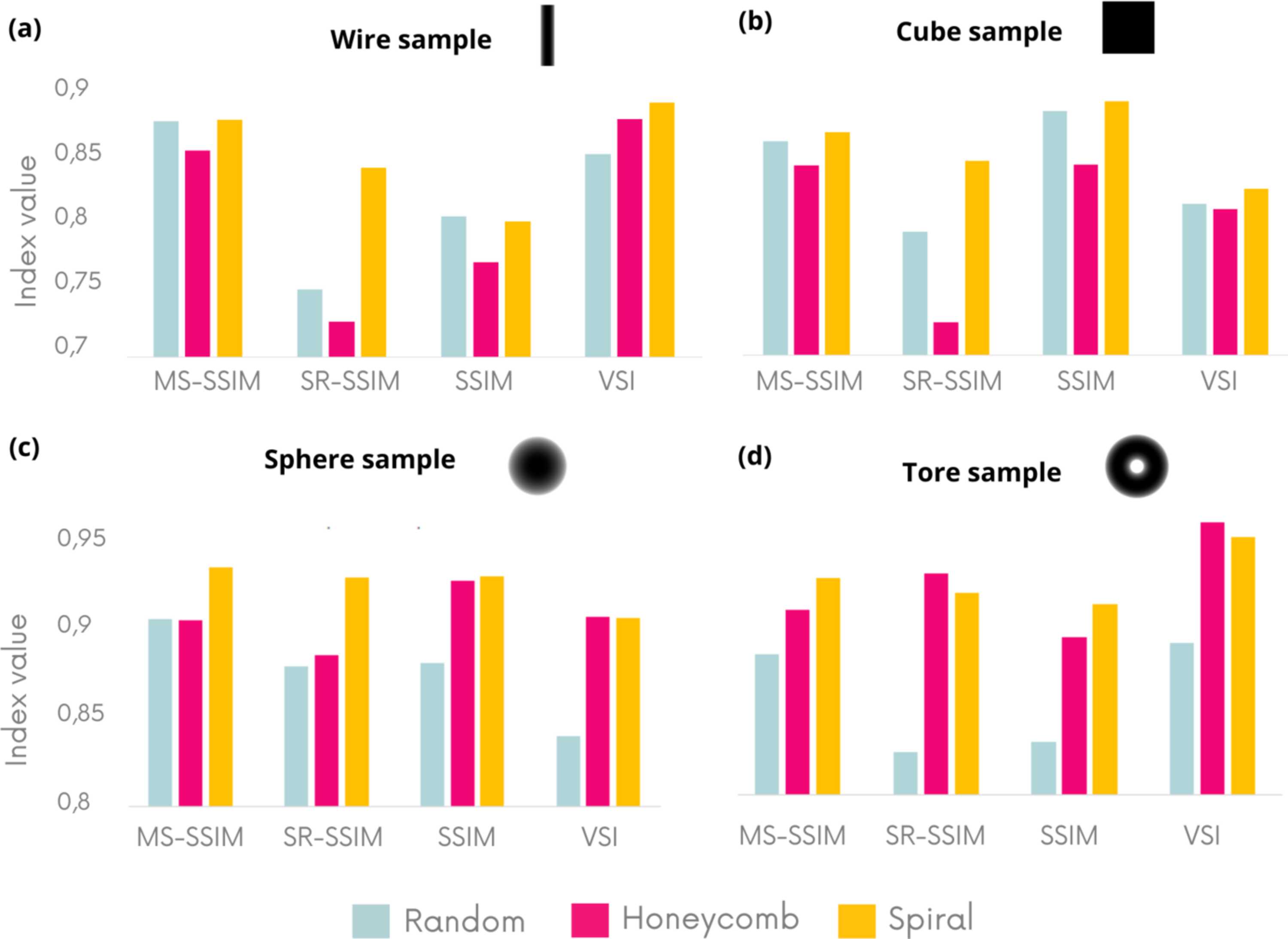

Figure 3
Different image quality indices calculated on Dy images obtained numerically using different membrane geometries. The higher the indexes, the better the image quality. The membrane is moved in one direction only. The object images represent the thickness of the simulated samples in grayscale, as shown in Fig. 1[link](c).
