Figure 3

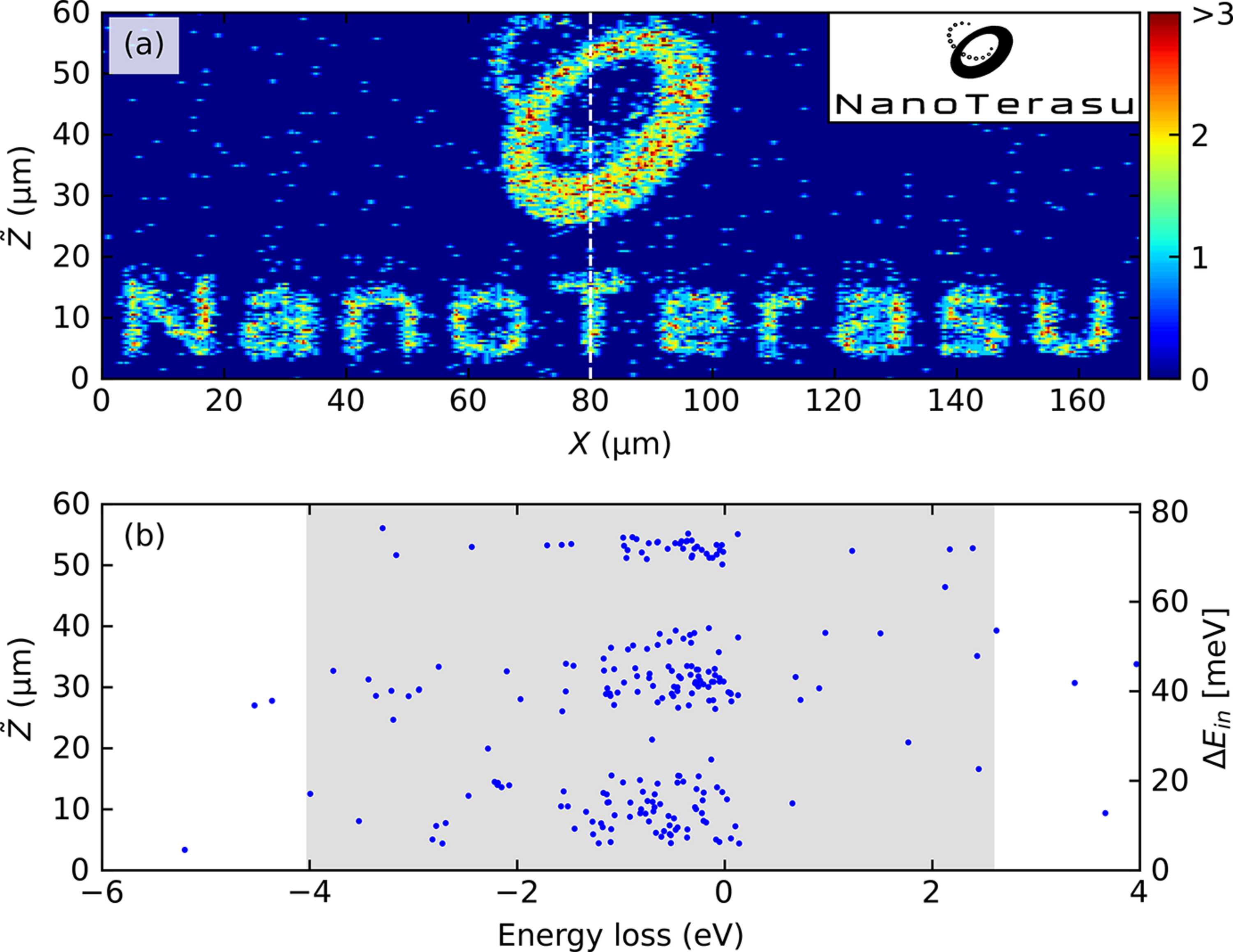

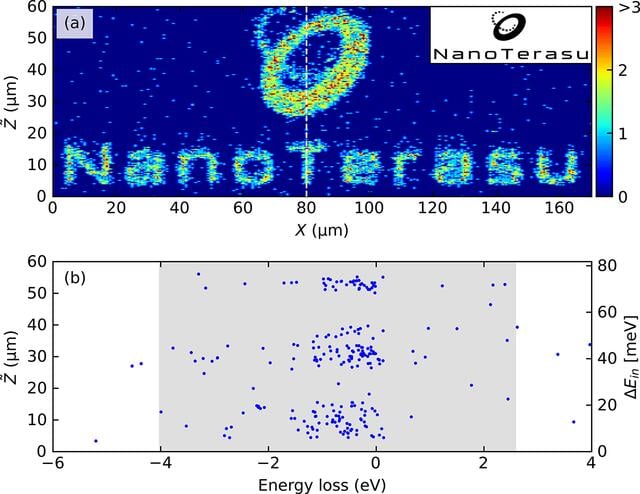

(a) RIXS image of the patterned NanoTerasu logo collected at the Ni L3 edge. The dashed line indicates horizontal position (X = 80 µm) where the scatter plot (b) was obtained. Inset: design of the Ni pattern fabricated on the substrate. (b) Scatter plot of detected X-ray photons at X = 80 µm as a function of photon energy and vertical position Mathematical equation. The RIXS colormap in (a) was constructed by integrating the photon counts within the gray-shaded loss-energy window.
