Figure 2

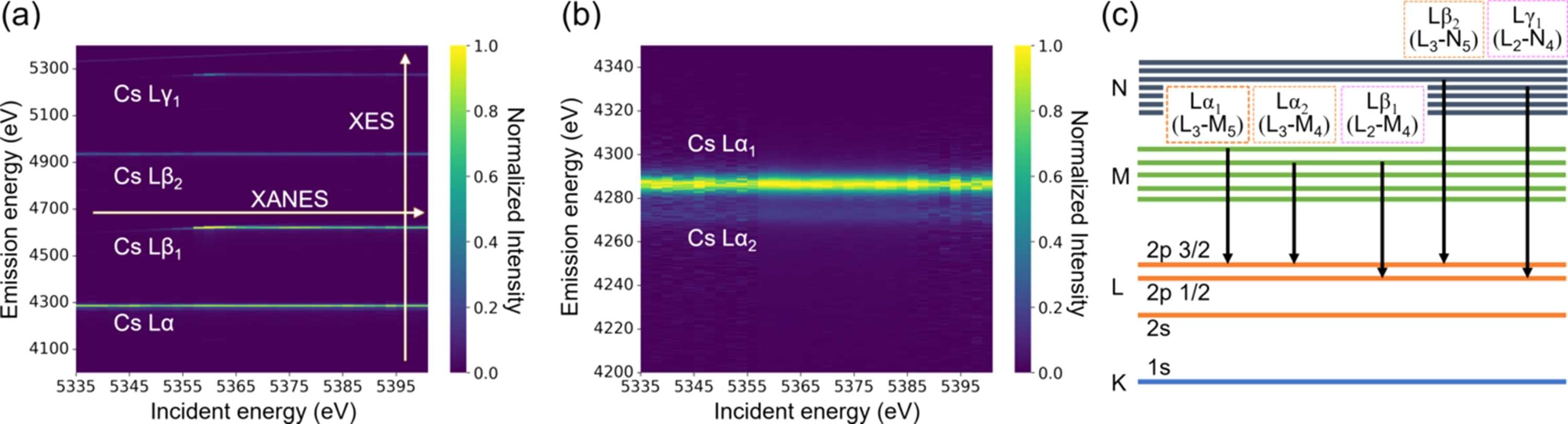

(a) 2D image of the intensity of emitted X-rays, normalized by the maximum intensity of La1, as a function of incident and emission X-ray energies for CsNO3. (b) Enlarged 2D map of part (a) to visualize the Lα1 and Lα2 features. (c) The transitions of the detected emission lines and their Siegbahn notations (e.g. Lα1) and IUPAC notations (e.g. L3–M5).
