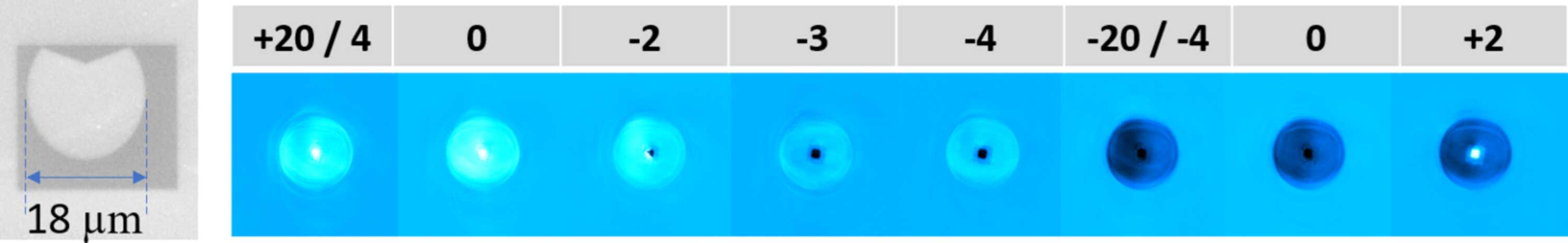

Figure 11
Normalized reflectivity from an 18 µm pacman-shaped Co/Gd dot (SEM image on the left), as a function of the applied magnetic field (in mT, indicated above each image). Measurement conditions: SZP L = +1, OSA 0.5 mm, photon energy 152 eV (Gd 4d resonance), incidence angle 45°, linear p-polarization (vertical). Each image consists of 1024 × 1024 pixels, corresponding to a width of ∼13.8 mm.
