Figure 13

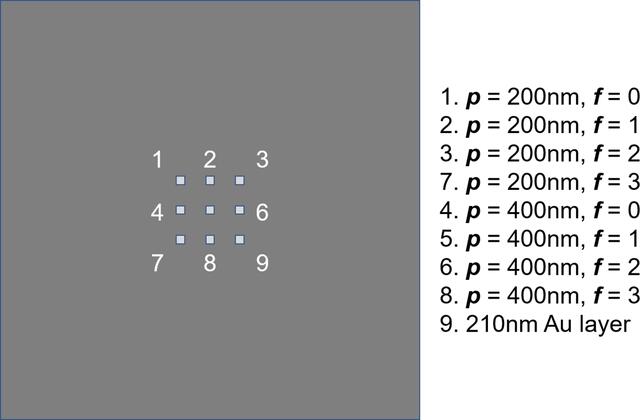

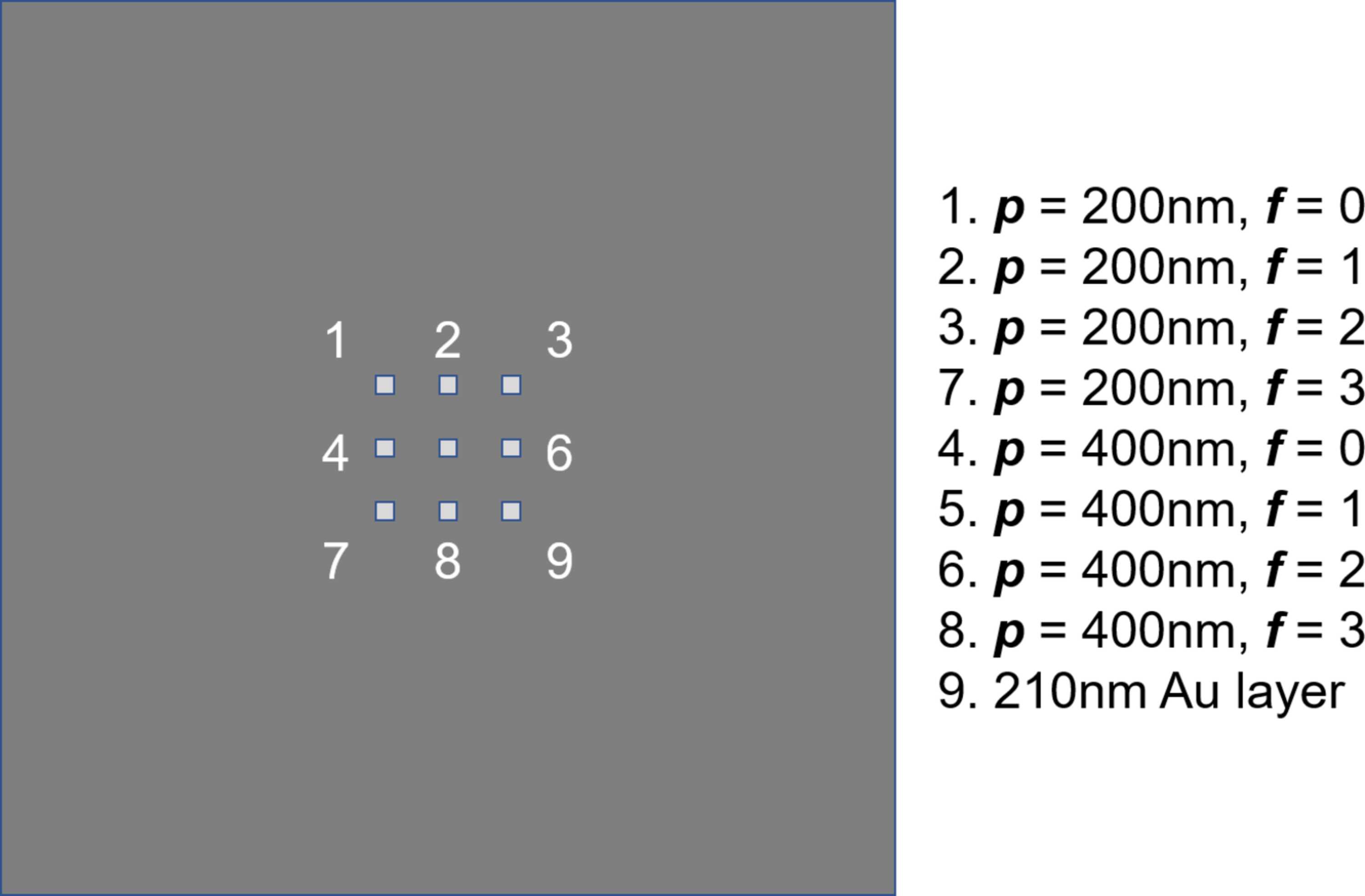

Sketch of a Si chip (7.5 mm wide) supporting nine Si3N4 square membranes (150 µm wide, 200 nm thick, 530 µm pitch), containing eight Au FGs and one continuous Au layer (210 nm thick). The area of each FG is 60 µm × 60 µm, and their p and f values are indicated on the side.
