![[Figure 2]](soo5003fig2mag.jpg)
|
|

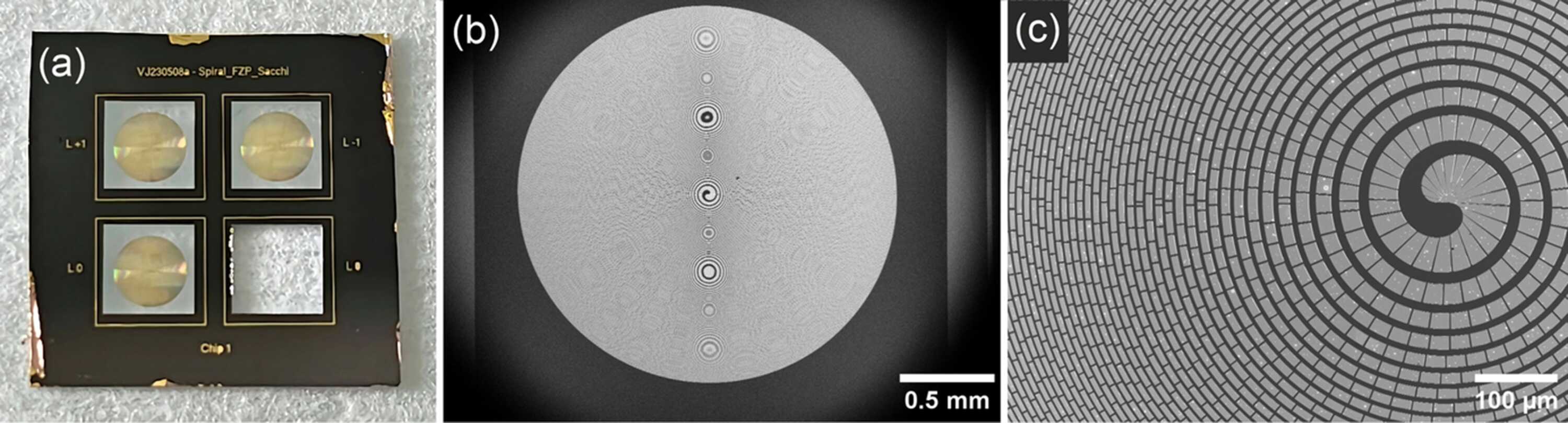

Figure 2
(a) Photograph of a 10 mm Si frame hosting three SZPs with s = −1, 0 and +1. (b, c) Scanning electron microscopy (SEM) images of the s = +1 SZP with different magnifications [scalebars are 0.5 mm in (b) and 0.1 mm in (c)]. |
![[Figure 2]](soo5003fig2.jpg)
