![[Figure 2]](tol5020fig2mag.jpg)
|
|
Figure 2

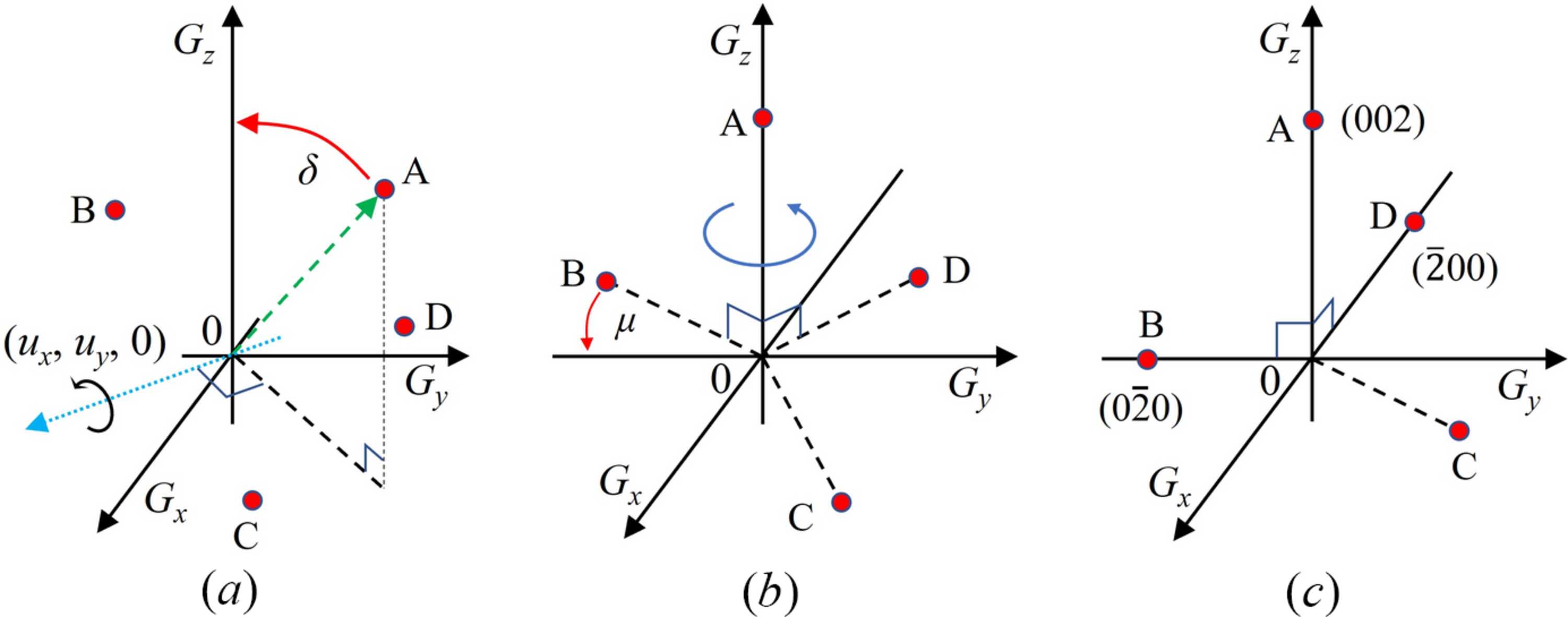

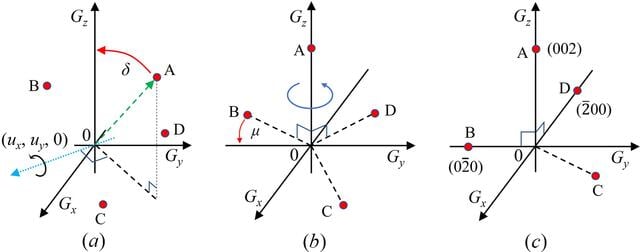

Schematic view of the multigrain indexing procedure. (a) A rotation operation along the (ux, uy, 0) axis by δ is applied to G-vectors so that an arbitrarily selected peak A is aligned to the Gz axis. (b) G vectors are rotated by μ to align the peak B to the Gy axis. (c) The overall rotation results show peaks A, B, and D are aligned with each axis, which indicates they are from the same voxel. |
