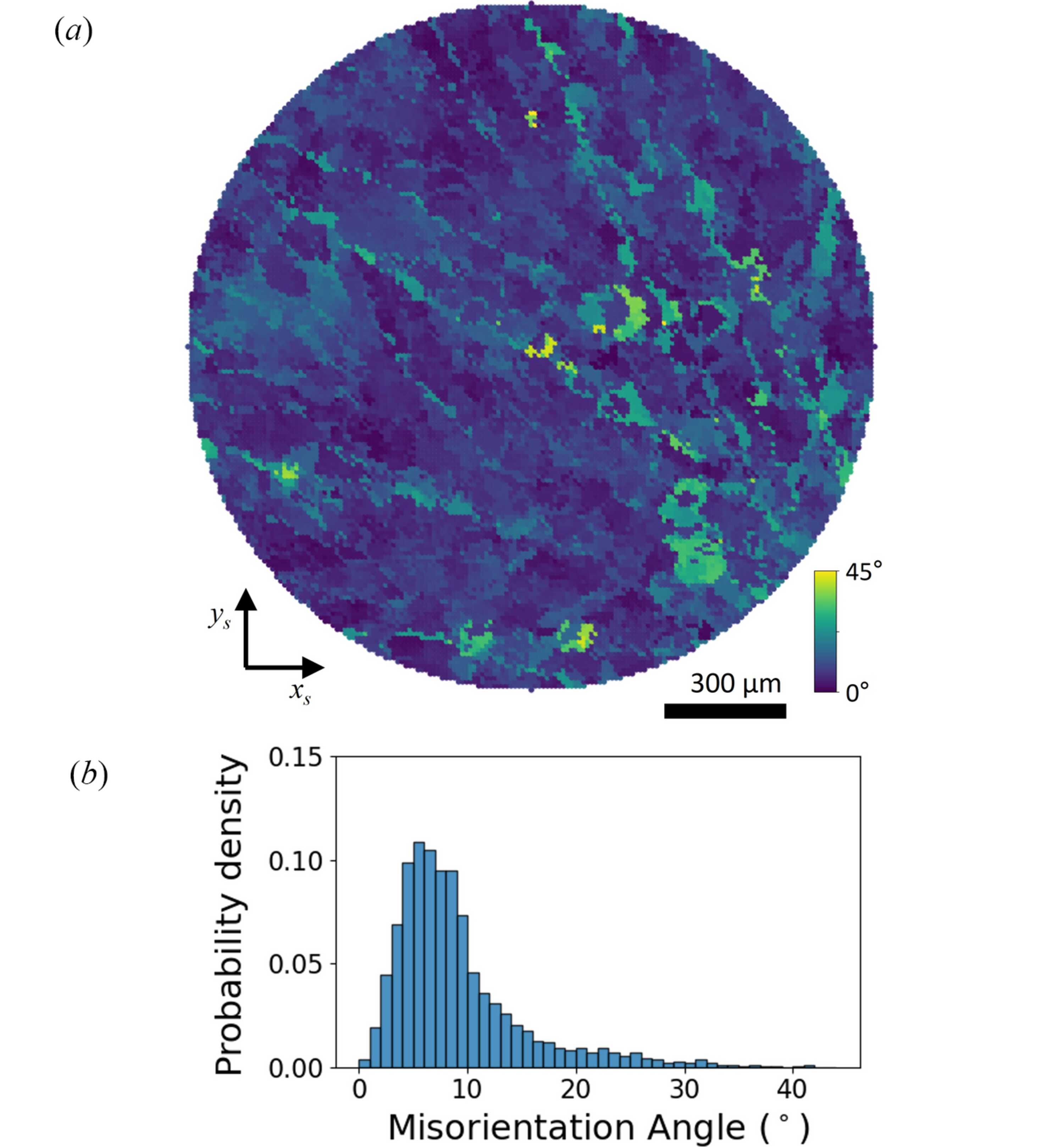

Figure 6
Orientation variation by thermal cycling test. (a) Orientation-variation map showing inhomogeneous local rotation across the observed region, with branch-like features resembling the grain-boundary morphology of the fresh state. (b) Histogram of voxel-wise misorientation angles, exhibiting a peak near 6°.
