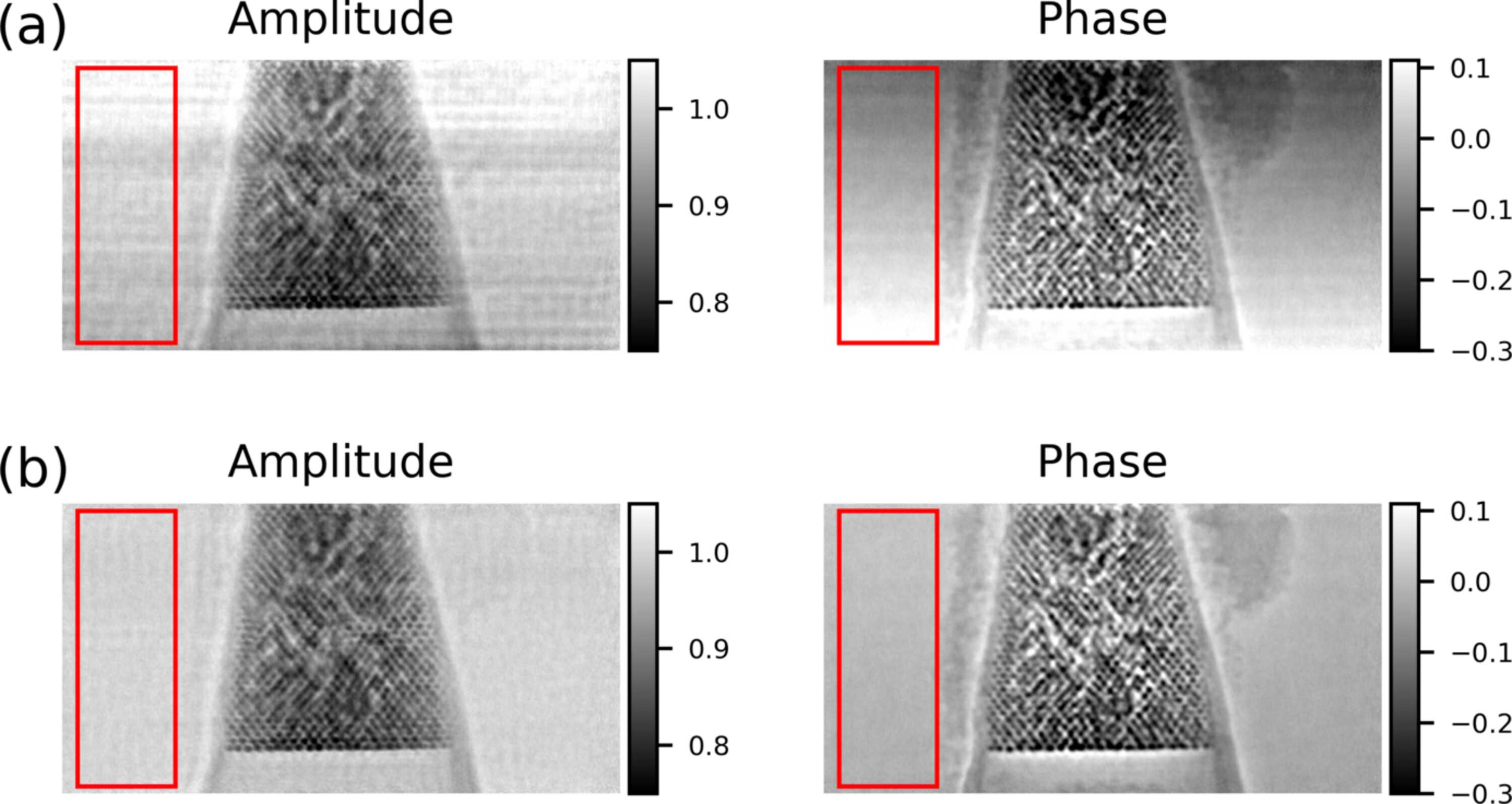

Figure 10
Ptychography reconstructions of an Au nanoparticle superlattice acquired at a dwell time of 3.2 ms, showing (a) FXFB off and (b) FXFB on, using XBPM-C as the input. Both amplitude and phase images are shown, with the red box indicating the ROI used for analysis. The scan step size was 20 nm × 20 nm with a 200 × 100 grid.
