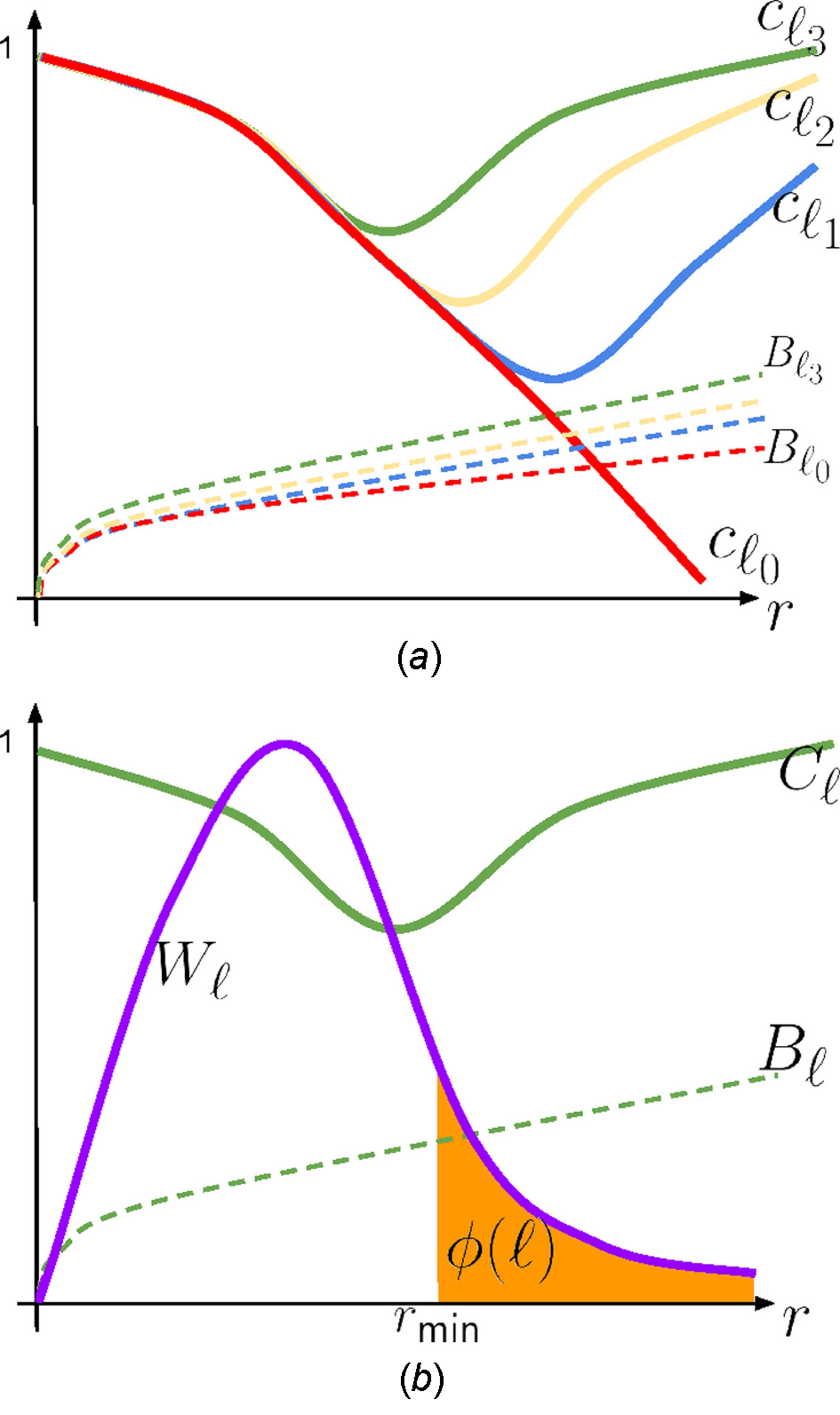

Figure 1
(a) Typical shape of correlation curves cℓ(r) for different values of the Paganin-filter parameter ℓ, with ℓ0 < ℓ1 < ℓ2 < ℓ3. Each curve clj(r) must always remain above its corresponding lower bound Blj(r). (b) NPS curve, given by Wℓ, as a function of ℓ. As ℓ increases, the correlation curve Cℓ always remains above Bℓ, monotonically tending toward 1, while the tail of Wℓ monotonically decays toward zero. |
