Figure 1

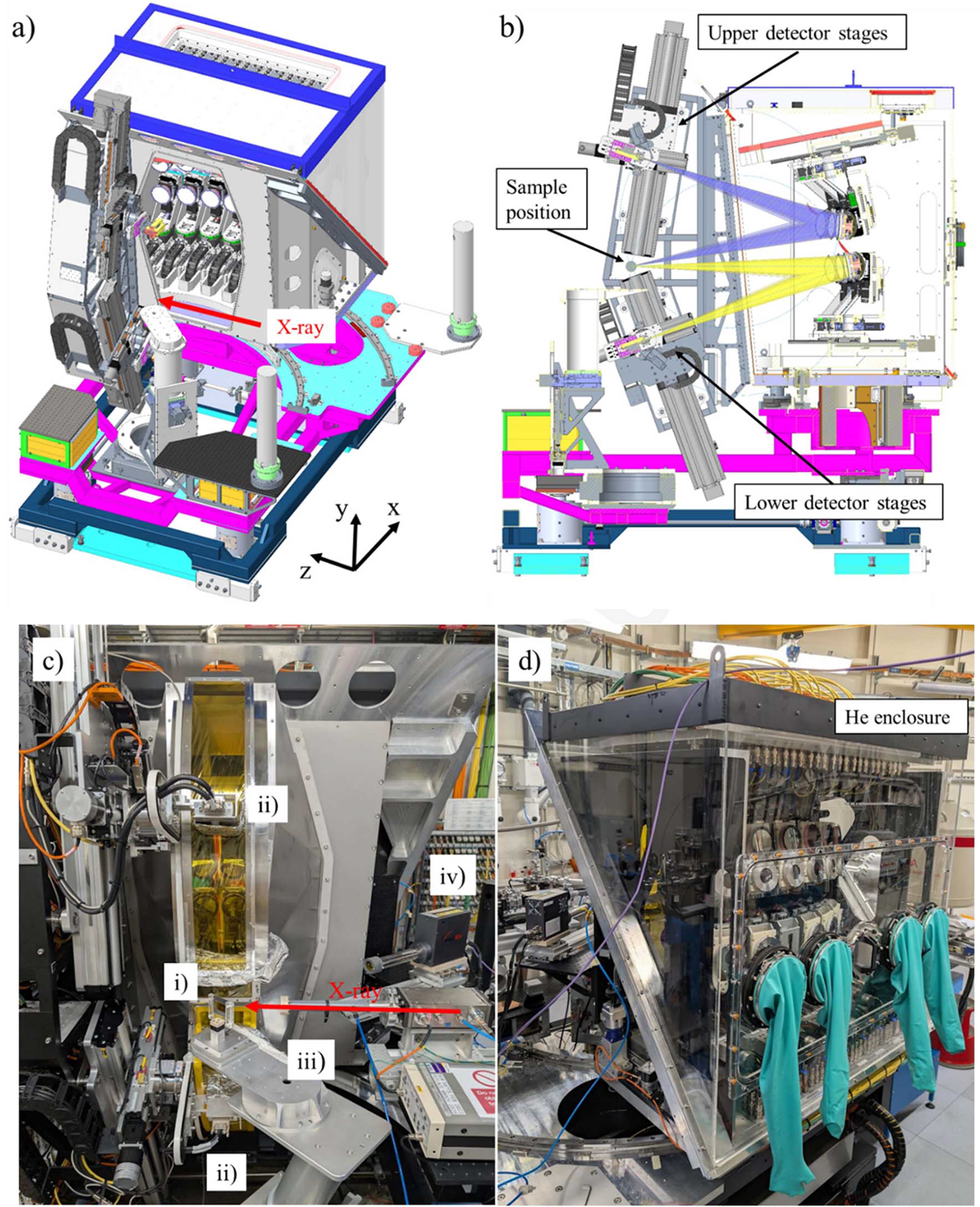

Overview of the I20 XES 14-crystal analyser spectrometer. (a) Top-side schematic view of the whole spectrometer. (b) Cross section view showing the emitted rays from the sample to the upper (purple) and lower (yellow) analysers, and then to the detectors. (c) Photograph around the sample area: (i) sample, (ii) Medipix detectors, (iii) sample stages, (iv) four-element Si drift detector. (d) Photograph taken from the back of the spectrometer. Additional sets of analysers are stored behind the analyser stages in a Perspex helium enclosure.
